wire rope cleats - Bulldog grips
Bulldog Grips made of stainless steel AISI 316
| Art.-No. VP à 10 | Art.-No. VP à 100 | wire rope Ø | thread | Ba mm | Bi mm |
| 2-2,5mm | M 3 | 18mm | 4,5 | ||
| 3mm | M 4 | 23mm | 6 | ||
| 4mm | M 5 | 21mm | 6 | ||
| 4-5mm | M 5 | 24mm | 7 | ||
| 6mm | M 5 | 31mm | 7 | ||
| 8mm | M 6 | 32mm | 11 | ||
| 10mm | M 8 | 37mm | 11 | ||
| 12mm | M10 | 41mm | 14 | ||
| Art.-No. lose | |||||
| 14mm | M10 | 46mm | 14 | ||
| 16mm | M10 | 52mm | 20 |

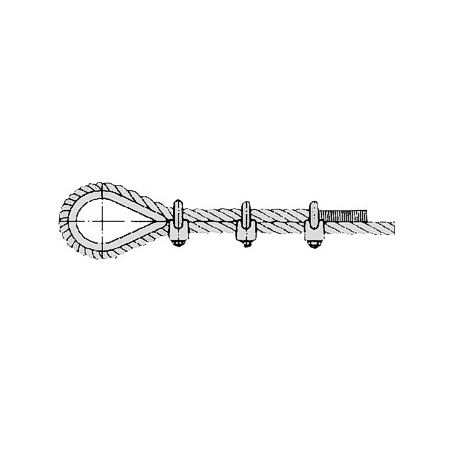

Nutzen Sie die vorgeschriebene Anzahl der Klemmen gemäß der jeweiligen Verwendungsvorschrift
Short URL: http://lindemann.kg/s/1/Q53
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
