Bow thrusters - Accessories - Tunnel
Bow tunnels for thrusters
| Art.-No. | length | Ø | suitable for type |
| 750 mm | 110 mm | BTQ110 | |
| 1000 mm | 110 mm | BTQ110 | |
| 750 mm | 125 mm | BTQ125 | |
| 750 mm | 140 mm | BTQ140 | |
| 1500 mm | 140 mm | BTQ140 | |
| 750 mm | 185 mm | BTQ185 | |
| 1500 mm | 185 mm | BTQ185 | |
| 2000 mm | 185 mm | BTQ185 | |
| 750 mm | 250 mm | BTQ250 | |
| 2000 mm | 250 mm | BTQ250 |

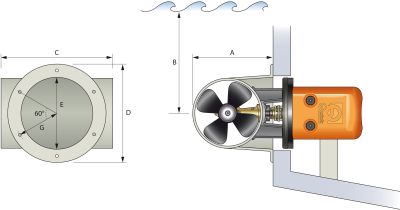

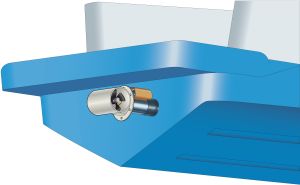

Tunnels for stern thrusters
| Art.-No. | A mm | B mm | C mm | D mm | E mm | G mm | suitable for type |
| 176 | 130 | 250 | 250 | 158 | 105,0 | BTQ140 | |
| 235 | 170 | 325 | 300 | 196 | 127,5 | BTQ185 | |
| 325 | 230 | 420 | 380 | 255 | 160,0 | BTQ250 | |
| 380 | 280 | 490 | 380 | 255 | 160,0 | BTQ300 |
Short URL: http://lindemann.kg/s/4/Q8d
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
