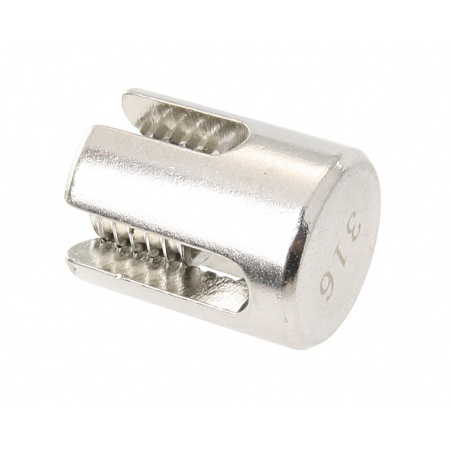

wire rope cleats - net clips - closed body

Net-Clips in stainless steel AISI316 to lock with an inside hexagon tool

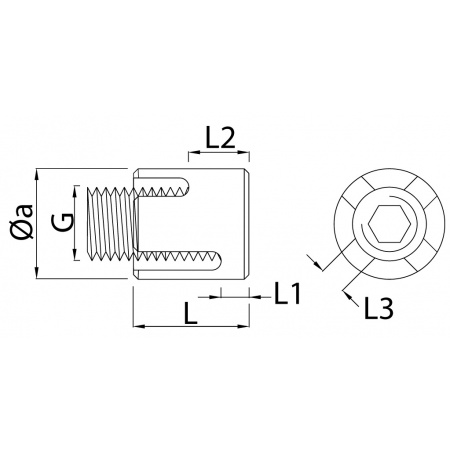

Art.-No.	wire rope Ø mm	Øa mm	L mm	L1 mm	L2 mm	L3 mm	G
PHA600003C BLUE WAVE Kreuzklemme mit Sackgewinde A4 3mm M10 Price (EUR): € 6,20 per pc. on stock	3 mm	17	19	5	8	3,2	M10
PHA600004C BLUE WAVE Kreuzklemme mit Sackgewinde A4 4mm M12 Price (EUR): € 6,50 per pc. on stock	4 mm	20	21	5	8	4,2	M12
PHA600005C BLUE WAVE Kreuzklemme mit Sackgewinde A4 5mm M12 Price (EUR): € 7,30 per pc. on stock	5 mm	20	23	5	10	5,2	M12
PHA600006C BLUE WAVE Kreuzklemme mit Sackgewinde A4 6mm M12 Price (EUR): € 7,50 per pc. on stock	6 mm	20	25	5	10	6,2	M12

Short URL: http://lindemann.kg/s/1/SGC

All article numbers marked in blue can be ordered.

All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
