Gleistein – Sheets and Halyards - DynaOne
Ultimate performance in its purest form: Floating wire rope without the snags
Construction

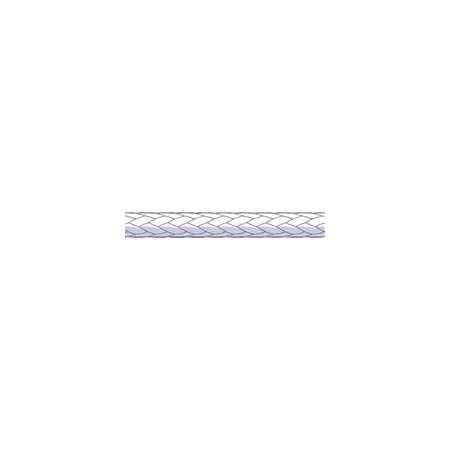

• 12-strand braid of 100% Dyneema® SK78 fibres
• Protective coating of coloured Geothane
• Available in a range of solid colours
• DynaOne T available in hemp colour
Good to know
• DynaOne floats
• In stoppers and areas of frequent contact it is suggested to fix an additional outer sheath of plaited Polyester in place (sewn and seized). Alternatively the use of TaperTwin is suggested
• DynaOne should only be used with fittings and equipment of comparable strength and robustness
• Fusion abrasion – due to frictional high temperatures – could be dramatically reduced by the copious application of water (or other liquid substances just as readily available on many yachts)
• Ideal for halyards, up/downhauls, reefing lines or sheet
Construction
• 12-strand braid of 100% Dyneema® SK78 fibres
• Protective coating of coloured Geothane
• Available in a range of solid colours
• DynaOne T available in hemp colour
Good to know
• DynaOne floats
• In stoppers and areas of frequent contact it is suggested to fix an additional outer sheath of plaited Polyester in place (sewn and seized). Alternatively the use of TaperTwin is suggested
• DynaOne should only be used with fittings and equipment of comparable strength and robustness
• Fusion abrasion – due to frictional high temperatures – could be dramatically reduced by the copious application of water (or other liquid substances just as readily available on many yachts)
• Ideal for halyards, up/downhauls, reefing lines or sheet
Art.-No. | Art.-No. | Art.-No. | Art.-No. | Ø mm | Breakingloads in daN | weight in kg / 100 m |
| - | - | - | 2 mm | 450 daN | 0,24 kg | |
| - | 3 mm | 900 daN | 0,48 kg | |||
| - | 4 mm | 1.400 daN | 0,84 kg | |||
| - | 5 mm | 2.400 daN | 1,43 kg | |||
| - | - | 6 mm | 3.190 daN | 1,90 kg | ||
| - | 8 mm | 5.590 daN | 3,30 kg | |||
| - | - | - | 10 mm | 7.980 daN | 4,80 kg | |
| - | - | - | 12 mm | 11.950 daN | 7,20 kg |
Elongination at 10% of breaking load: 0,6%
Ultimate performance in its purest form: Floating wire rope without the snags
Construction
• 12-strand braid of 100% Dyneema® SK78 fibres
• Protective coating of coloured Geothane
• Available in a range of solid colours
• DynaOne T available in hemp colour
Good to know
• DynaOne floats
• In stoppers and areas of frequent contact it is suggested to fix an additional outer sheath of plaited Polyester in place (sewn and seized). Alternatively the use of TaperTwin is suggested
• DynaOne should only be used with fittings and equipment of comparable strength and robustness
• Fusion abrasion – due to frictional high temperatures – could be dramatically reduced by the copious application of water (or other liquid substances just as readily available on many yachts)
• Ideal for halyards, up/downhauls, reefing lines or sheet
FULL 100 METER COILS ONLY
Construction
• 12-strand braid of 100% Dyneema® SK78 fibres
• Protective coating of coloured Geothane
• Available in a range of solid colours
• DynaOne T available in hemp colour
Good to know
• DynaOne floats
• In stoppers and areas of frequent contact it is suggested to fix an additional outer sheath of plaited Polyester in place (sewn and seized). Alternatively the use of TaperTwin is suggested
• DynaOne should only be used with fittings and equipment of comparable strength and robustness
• Fusion abrasion – due to frictional high temperatures – could be dramatically reduced by the copious application of water (or other liquid substances just as readily available on many yachts)
• Ideal for halyards, up/downhauls, reefing lines or sheet
FULL 100 METER COILS ONLY
| Art.-No. | Art.-No. | Ø mm | Breakingloads in daN | weight in kg / 100 m |
| 3 mm | 900 daN | 0,48 kg | ||
| 4 mm | 1.400 daN | 0,84 kg | ||
| 5 mm | 2.400 daN | 1,43 kg | ||
| 6 mm | 3.190 daN | 1,90 kg |
Elongination at 10% of breaking load: 0,6%
