Shackles - BLUE WAVE CE Shackles - Bow Type
BLUE WAVE

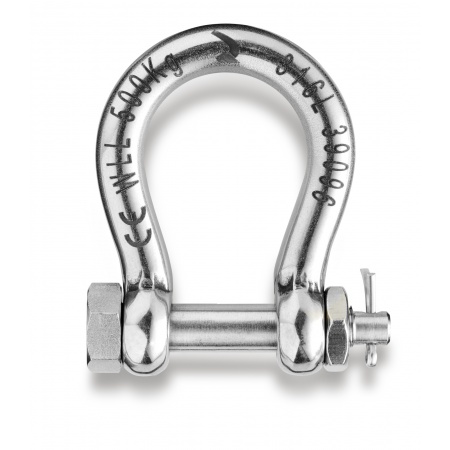

CE certified D-shackle with safety pin.
Made of polished stainless steel AISI316L / 1.4404
CE certified D-shackle with safety pin.
Made of polished stainless steel AISI316L / 1.4404

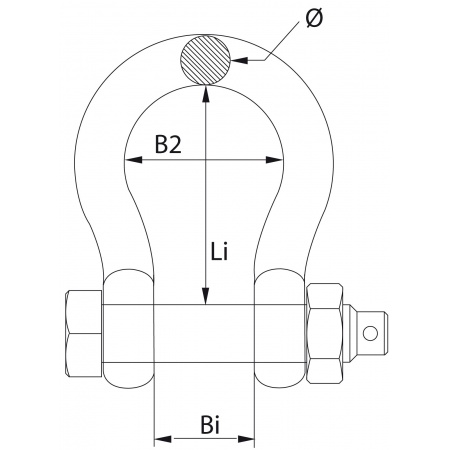

| Art.-No. | Pin | Ø mm | Li mm | Bi mm | B2 mm | Weight g | BL kg | WLL kg |
| M6 | 6 | 19 | 12 | 21 | 30 g | 2100 | 350 | |
| M8 | 8 | 30 | 16 | 25 | 80 g | 3600 | 600 | |
| M10 | 10 | 33 | 20 | 31 | 135 g | 5400 | 900 | |
| M12 | 11 | 40 | 24 | 38 | 220 g | 6000 | 1000 | |
| M12 | 12 | 45 | 28 | 46 | 350 g | 7800 | 1300 | |
| M16 | 14 | 65 | 33 | 54 | 580 g | 12000 | 2000 | |
| M20 | 16 | 70 | 35 | 55 | 800 g | 16800 | 2800 | |
| M22 | 19 | 76 | 38 | 58 | 1225 g | 19800 | 3300 | |
| M24 | 22 | 88 | 44 | 66 | 1900 g | 27000 | 4500 | |
| M27 | 25 | 100 | 50 | 76 | 2800 g | 30000 | 5000 |
Short URL: http://lindemann.kg/s/1/VaX
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
