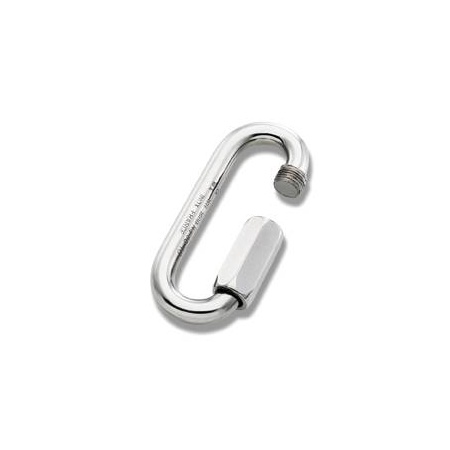

quick links - Long type - in stainless steel
Stainless steel A4L AISI316L
with wide opening
with wide opening
| Art.-No. | La mm | Li mm | Ø mm | Bi mm | L2 mm | weight g | BRL kg | WL 5:1 kg | |
| 33,0 | 28,0 | 2,5 | 7,0 | 7,0 | 3,6 | 450 | 90 | ||
| 39,5 | 33,5 | 3,0 | 8,5 | 8,5 | 7,0 | 725 | 145 | ||
| 46,0 | 39,0 | 3,5 | 10,0 | 10,0 | 10,5 | 1000 | 200 | ||
| 53,0 | 45,0 | 4,0 | 11,5 | 11,5 | 15,4 | 1250 | 250 | ||
| 62,0 | 52,0 | 5,0 | 13,0 | 13,0 | 25,7 | 2000 | 400 | ||
| 70,5 | 58,5 | 6,0 | 14,5 | 14,5 | 42,0 | 2900 | 580 | ||
| 79,0 | 65,0 | 7,0 | 16,0 | 16,0 | 61,5 | 4000 | 800 | CE & EN362 | |
| 88,0 | 72,0 | 8,0 | 17,5 | 17,5 | 93,3 | 4900 | 980 | ||
| 105,5 | 85,5 | 10,0 | 20,5 | 20,5 | 161,0 | 8000 | 1600 | ||
| 124,0 | 100,0 | 12,0 | 23,5 | 23,5 | 274,7 | 11000 | 2200 | ||
| 142,0 | 114,0 | 14,0 | 26,5 | 26,5 | 430,5 | 15500 | 3100 | ||
| 161,0 | 129,0 | 16,0 | 29,5 | 29,5 | 645,8 | 20000 | 4000 |
The specified BRL only applies to the load on the main axis and only when the thread is completely screwed down.
Short URL: http://lindemann.kg/s/1/VQL
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
