quick links - Long type - in galvanized steel

Art.-No.	La mm	Li mm	Ø mm	Bi mm	L2 mm	weight g	BRL kg	WL 5:1 kg

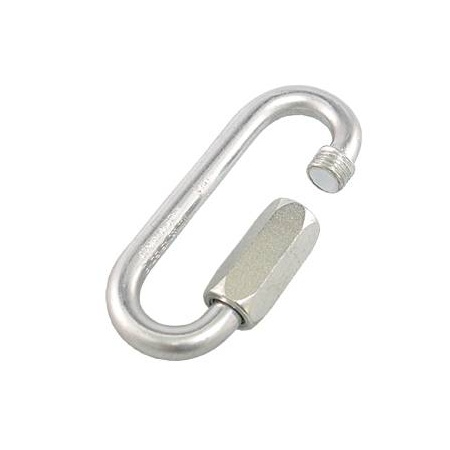

MCG080V PEGUET Schraubglied lang verzinkt 8mm Price (EUR): € 6,50 per pc. on stock	88,0	72,0	8	17,5	17,5	91	3250	650	CE & EN362
MCG100V PEGUET Schraubglied lang verzinkt 10mm Price (EUR): € 8,40 per pc. on stock	105,5	85,5	10	20,5	20,5	157	5000	1000	CE & EN362
MCG120V PEGUET Schraubglied lang verzinkt 12mm Price (EUR): € 12,20 per pc. on stock	124,0	100,0	12	23,5	23,5	268	6250	1250

The specified BRL only applies to the load on the main axis and only when the thread is completely screwed down.

Short URL: http://lindemann.kg/s/1/VQM

All article numbers marked in blue can be ordered.

All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
