slip hooks - standard

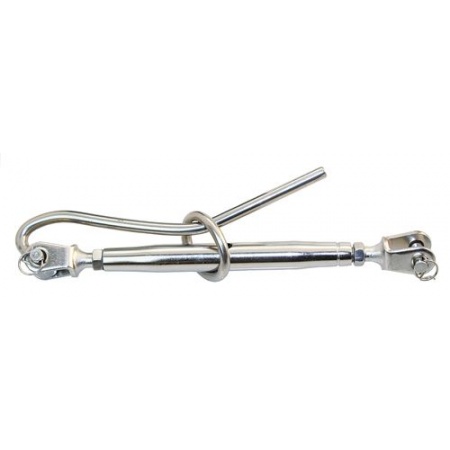

Montagebeispiel. Lieferung ohne Wantenspanner

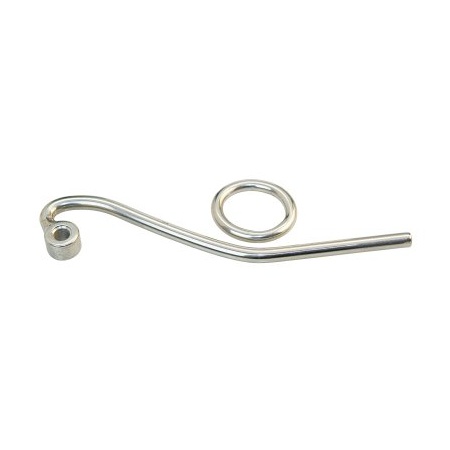

Slip hooks in stainless steel AISI 316

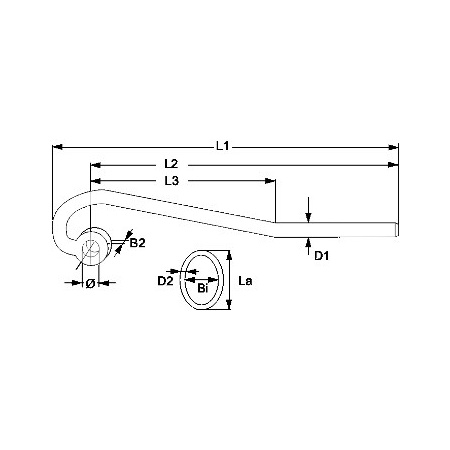

Art.-No.	suitable for	B2 mm	L1 mm	L2 mm	L3 mm	D1 mm	Ø mm	Bi mm	La mm	D2 mm
PK450506 Sliphaken A4 für Pin 5mm Price (EUR): € 5,30 per pc. on stock	1)	6,8	132	115	82	6	5,3	21	33	5
PK450606 Sliphaken A4 für Pin 6mm Price (EUR): € 5,30 per pc. on stock	2)	9,2	142	127	82	6	6,4	20	35	5
PK450808 Sliphaken A4 für Pin 8mm Price (EUR): € 9,40 per pc. on stock	3)	11,2	192	163	113	8	8,7	27	42	5
PK451312 Sliphaken A4 für Pin 12mm Price (EUR): € 24,50 per pc. on stock	4)	14,0	235	204	148	12	13,2	34	54	6

1) PH120005 / PH120006 / PH120505 / PH120306 / PH120406
2) PH120006X / PH120008 / PH120408 / PH130006A / PH130306
3) PH120008X / PH120010 / PH120510 / PH130008A / PH130408A / PH130508A
4) PH120012 / PH120014 / PH120612 / PH130012A / PH130712A

Short URL: http://lindemann.kg/s/1/Q6N

All article numbers marked in blue can be ordered.

All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
