swage terminals - Ball terminals / Mil. specs. Terminals

Ball terminals in AISI 303

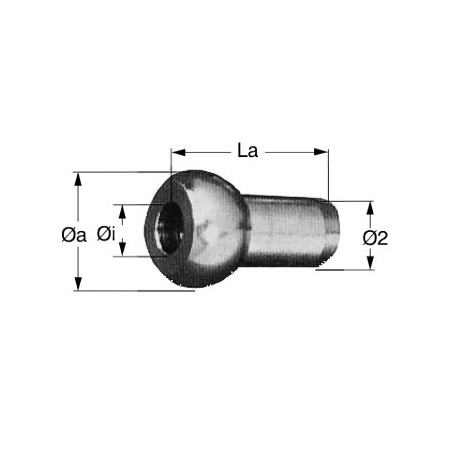

Art.-No.	(MS Part.No.)	Øi	Ø2	La	Øa	Drahtseil-Ø
		mm	mm	mm	mm	inch	nom.mm
LK16B Kugel-Stopper-Terminal A1 1/16" Price (EUR): € 2,10 per pc. on stock		1,7	3,3	6,8	4,8	1/16"	1,6
LK25B Kugel-Stopper-Terminal A1 3/32" Price (EUR): € 2,90 per pc. on stock	MS 20664C3	2,6	4,2	9,8	7,2	3/32"	2,5
LK3B Kugel-Stopper-Terminal A1 1/8" Price (EUR): € 3,50 per pc. not in stock	MS 20664C4	3,5	5,7	12,7	8,9	1/8"	3,2
LK4B Kugel-Stopper-Terminal A1 5/32" Price (EUR): € 5,40 per pc. limited quantities	MS 20664C5	4,3	6,5	15,6	10,8	5/32"	4
LK5B Kugel-Stopper-Terminal A1 3/16" Price (EUR): € 6,50 per pc. on stock	MS 20664C6	5,1	7,5	18,5	12,5	3/16"	4,8

Short URL: http://lindemann.kg/s/1/QY2

All article numbers marked in blue can be ordered.

All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
