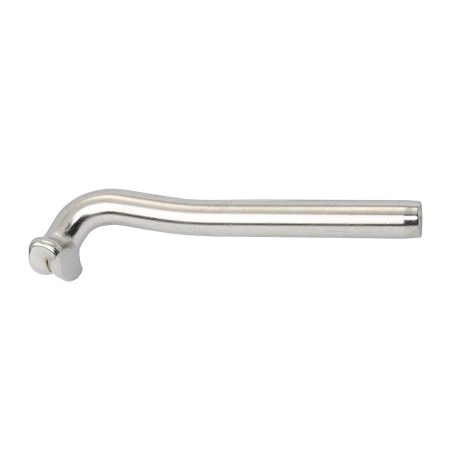

BLUEWAVE swage terminal / T-Terminal
forged, AISI 316
forged, AISI 316

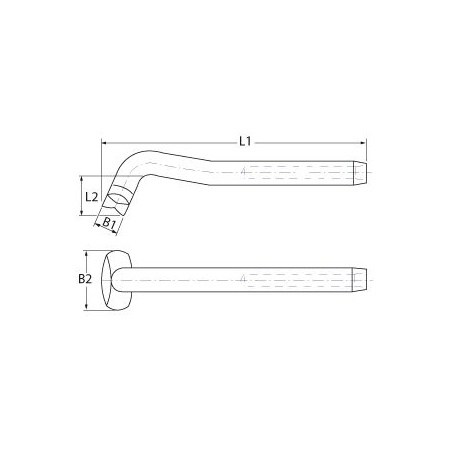

| Art.-No. Terminal | Art.-No. Backplates | L1 mm | L2 mm | B1 mm | B2 mm | Øa mm | wirerope-Ø |
| 75 | 13 | 6,35 | 13,5 | 5,50 | 2,0 mm | ||
| 77 | 13 | 6,35 | 13,5 | 5,50 | 2,5 mm | ||
| 86 | 13 | 6,35 | 13,5 | 6,35 | 3,0 mm | ||
| 101 | 14 | 7,50 | 16,5 | 7,50 | 4,0 mm | ||
| 112 | 16 | 9,00 | 18,5 | 9,00 | 5,0 mm | ||
| 136 | 19 | 12,58 | 27,5 | 12,58 | 6,0 mm | ||
| 148 | 26 | 14,20 | 30,0 | 14,20 | 7,0 mm | ||
| 184 | 30 | 16,00 | 33,5 | 16,00 | 8,0 mm | ||
| 214 | 30 | 17,80 | 36,0 | 17,80 | 10,0 mm |
Short URL: http://lindemann.kg/s/1/QEs
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
