swage terminals - Toggle-Terminals

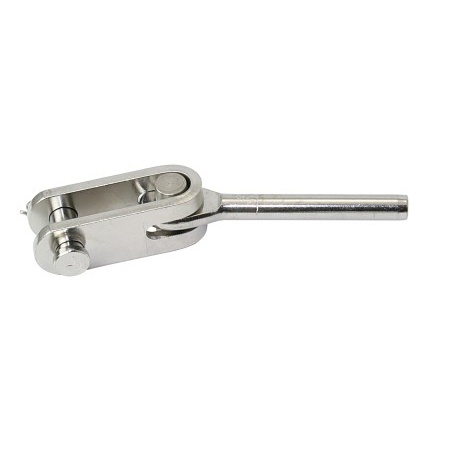

BLUE WAVE Toggle swage terminal
AISI 316
AISI 316

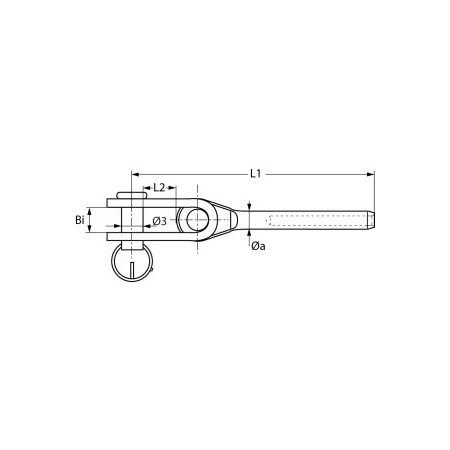

Art.-No. | Øa mm | Ø3 mm | L1 mm | L2 mm | Bi mm | wirerope-Ø | BRL kg |
6,35 | 5,00 | 78 | 9,0 | 7 | 3 mm | 1000 | |
6,35 | 6,35 | 81 | 13,8 | 8 | 3 mm | 1300 | |
7,50 | 6,35 | 91 | 10,8 | 10 | 4 mm | 1400 | |
7,50 | 8,00 | 94 | 21,0 | 10 | 4 mm | 1700 | |
9,00 | 9,50 | 116 | 22,7 | 12 | 5 mm | 2400 | |
12,58 | 12,70 | 151 | 26,7 | 18 | 6 mm | 5500 | |
14,20 | 12,70 | 157 | 26,7 | 18 | 7 mm | 6200 | |
16,00 | 15,90 | 198 | 33,0 | 20 | 8 mm | 8700 | |
16,00 | 15,90 | 192 | 33,0 | 20 | 10 mm | 9700 |
Short URL: http://lindemann.kg/s/1/QON
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
