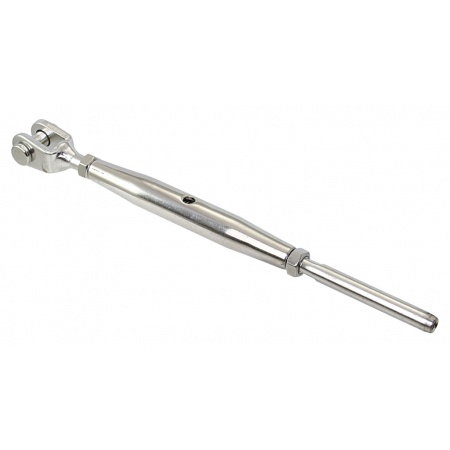

rigging screw - metric thread - closed body, with fork end and swage terminal
BLUE WAVE rigging screw, closed Body,
with fork end and swage terminal
AISI 316
with fork end and swage terminal
AISI 316

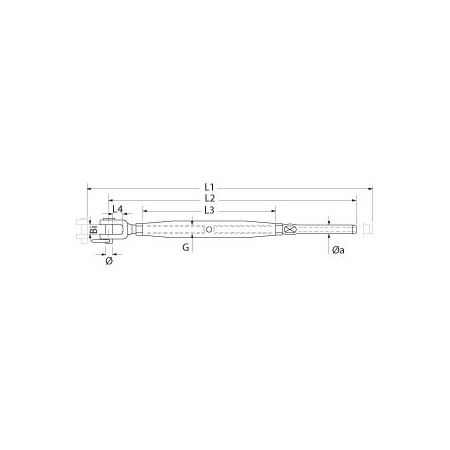

| Art.-No. | G | L1 mm | L2 mm | L3 mm | L4 mm | Øa mm | Ø mm | Bi mm | wirerope-Ø mm | BRL kg |
| M5 | 206 | 152 | 80 | 6,9 | 5,50 | 5,0 | 7,5 | 2,5 | 800 | |
| M6 | 232 | 170 | 92 | 6,9 | 6,35 | 5,0 | 7,5 | 3,0 | 1200 | |
| M6 | 233 | 171 | 92 | 7,4 | 6,35 | 6,0 | 9,5 | 3,0 | 1200 | |
| M6 | 242 | 180 | 92 | 7,9 | 7,50 | 5,0 | 7,5 | 4,0 | 1200 | |
| M6 | 242 | 180 | 92 | 7,4 | 7,50 | 6,0 | 9,5 | 4,0 | 1200 | |
| M8 | 275 | 199 | 112 | 7,4 | 7,50 | 6,0 | 9,5 | 4,0 | 1600 | |
| M8 | 277 | 201 | 112 | 8,2 | 7,50 | 8,0 | 11,0 | 4,0 | 1700 | |
| M8 | 281 | 205 | 112 | 10,0 | 9,00 | 6,0 | 9,5 | 5,0 | 1600 | |
| M8 | 284 | 208 | 112 | 8,2 | 9,00 | 8,0 | 11,0 | 5,0 | 1700 | |
| M10 | 312 | 228 | 120 | 10,0 | 9,00 | 8,0 | 11,0 | 5,0 | 2500 | |
| M10 | 316 | 232 | 120 | 9,2 | 9,00 | 9,5 | 12,0 | 5,0 | 2500 | |
| M10 | 327 | 243 | 120 | 11,0 | 12,58 | 8,0 | 11,0 | 6,0 | 3200 | |
| M12 | 393 | 287 | 152 | 12,5 | 12,58 | 12,0 | 14,0 | 6,0 | 5100 | |
| M12 | 401 | 295 | 152 | 19,0 | 14,20 | 12,0 | 14,0 | 7,0 | 5100 | |
| M14 | 439 | 319 | 172 | 19,0 | 14,20 | 14,0 | 14,0 | 7,0 | 6800 | |
| M16 | 498 | 365 | 192 | 25,0 | 16,00 | 14,0 | 18,0 | 8,0 | 8700 | |
| M16 | 506 | 373 | 192 | 26,0 | 18,00 | 14,0 | 18,0 | 10,0 | 9400 | |
| M20 | 587 | 427 | 223 | 33,3 | 17,80 | 19,0 | 24,0 | 10,0 | 9700 | |
| M20 | 606 | 446 | 223 | 32,3 | 20,00 | 19,0 | 24,0 | 12,0 | 11500 |
Rigging screw fork / swage terminal
For processing with swaging or pressing machines,
Metric thread, made of stainless steel A4 - AISI316
For processing with swaging or pressing machines,
Metric thread, made of stainless steel A4 - AISI316

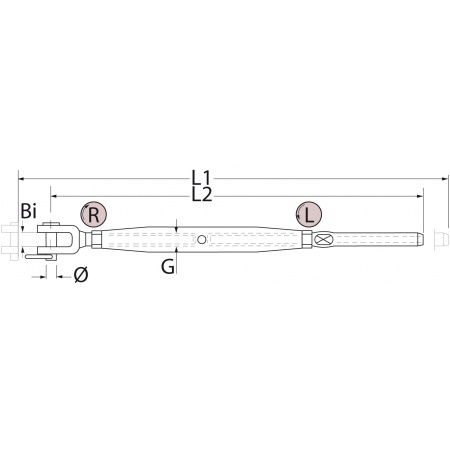

| Art.-No. | wirerope-Ø | G | Ø mm | Bi mm | L1 mm | L2 mm | shaft-Ø mm |
| 3 mm | M6 | 5,8 mm | 7,0 mm | 250 mm | 170 mm | 6,4 mm | |
| 4 mm | M6 | 5,8 mm | 7,0 mm | 255 mm | 180 mm | 7,5 mm | |
| 4 mm | M8 | 7,8 mm | 10,0 mm | 280 mm | 200 mm | 7,5 mm | |
| 5 mm | M8 | 7,8 mm | 11,0 mm | 300 mm | 220 mm | 9,0 mm | |
| 5 mm | M10 | 8,9 mm | 12,0 mm | 300 mm | 220 mm | 9,0 mm | |
| 6 mm | M12 | 12,0 mm | 14,0 mm | 385 mm | 270 mm | 12,6 mm |
