accessories for aviation use - terminals

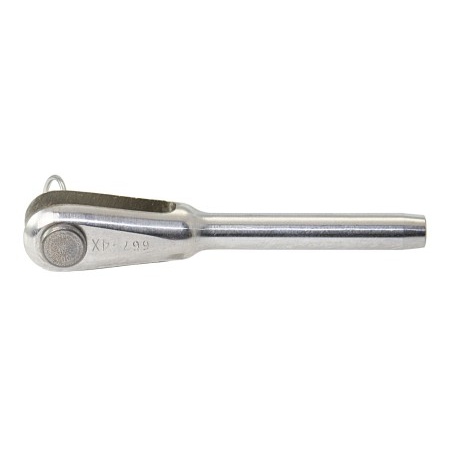

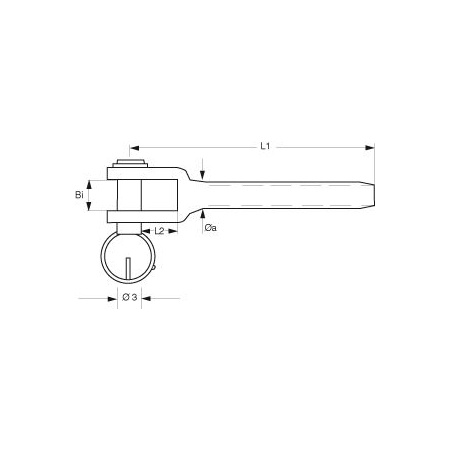

Fork terminal AISI316 with pin AISI304

Art.-No.	Øa mm	L1 mm	L2 mm	Ø3 mm	Bi mm	wirerope-Ø inch	wire rope nom. mm
LK6732A4 Gabelterminal, lang A4/A2 3/32", Pin 4,8mm Price (EUR): € 28,10 per pc. on stock	5,5	49,4	14,6	4,8	2,7	3/32"	2,5
LK6743A4 Gabelterminal, lang A4/A2 1/8", Pin 4,8mm Price (EUR): € 32,30 per pc. on stock	6,3	59,7	16,2	4,8	4,9	1/8"	3,2
LK6754A4 Gabelterminal, lang A4/A2 5/32", Pin 6,4mm Price (EUR): € 40,30 per pc. limited quantities	7,5	67,4	17,1	6,3	5,1	5/32"	4,0
LK6765A4 Gabelterminal, lang A4/A2 3/16", Pin 8,0mm Price (EUR): € 54,00 per pc. on stock	9,1	78,0	18,3	7,9	6,6	3/16"	4,8

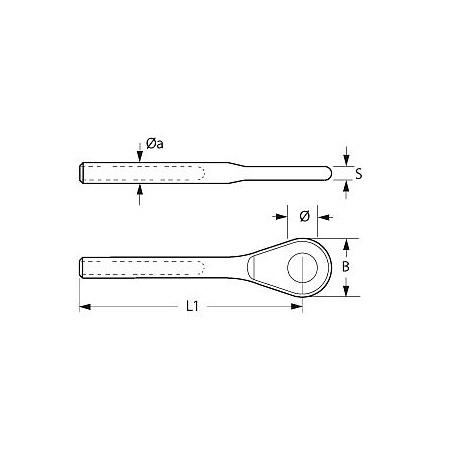

Starboat eye terminals, stainless steel AISI316

Art.-No.	(MS Part No.)	Øa mm	B mm	L1 mm	Ø mm	S mm	wirerope-Ø inch	wire rope nom. mm
LK6832A4 Augterminal, lang A4 3/32", Auge 4,8mm Price (EUR): € 11,50 per pc. on stock	MS20668-3	5,5	11,1	51,9	4,8	2,6	3/32"	2,5
LK6843A4 Augterminal, lang A4 1/8", Auge 4,8mm Price (EUR): € 14,60 per pc. on stock	MS20668-4	6,3	12,7	65,9	4,8	4,8	1/8"	3,2
LK6854A4 Augterminal, lang A4 5/32", Auge 6,3mm Price (EUR): € 20,00 per pc. on stock	MS20668-5	7,5	16,3	76,9	6,3	5,0	5/32"	4,0
LK6865A4 price on application	MS20668-6	9,0	19,8	81,0	7,9	6,5	3/16"	4,8

Short URL: http://lindemann.kg/s/14/QRx

All article numbers marked in blue can be ordered.

All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
