Optimist parts - buoyancy bags - Dinghy Buoyancy bags

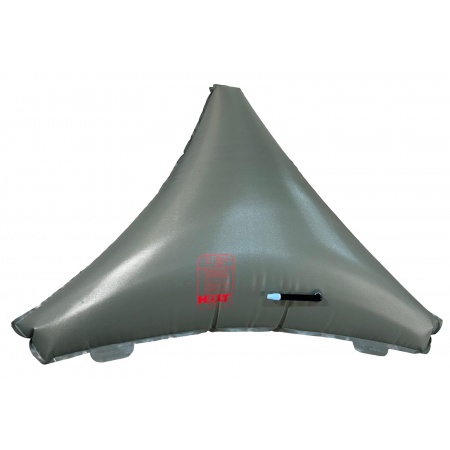

HASB2101

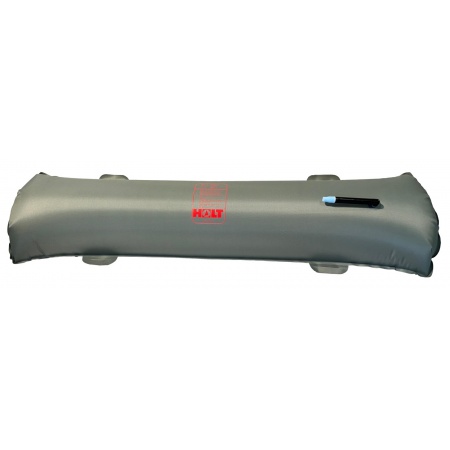

HASB2102

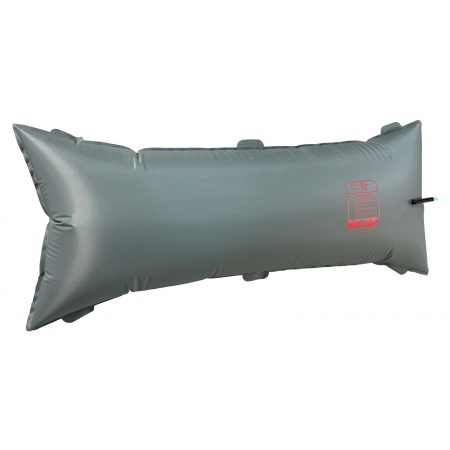

HASB2112

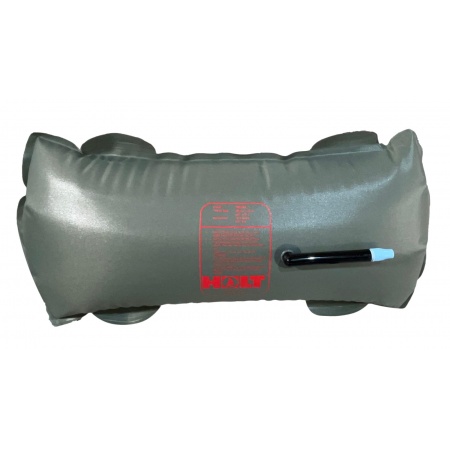

HASB2202

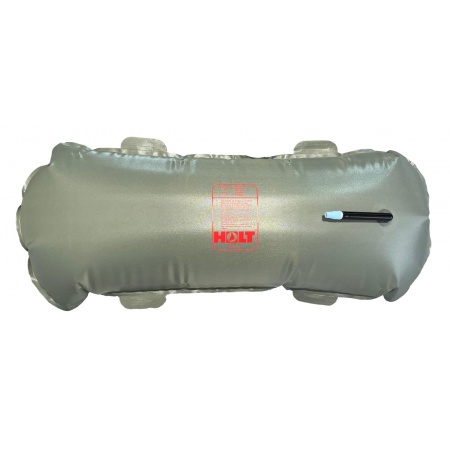

HASB2302

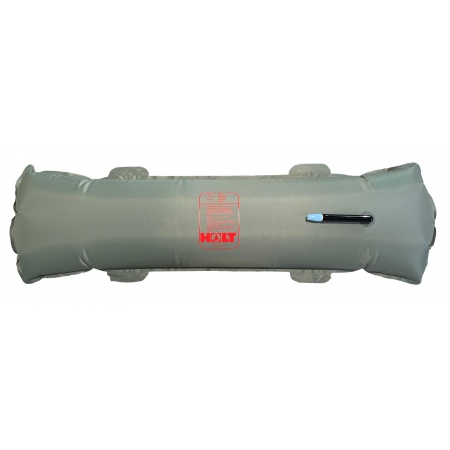

HASB2402

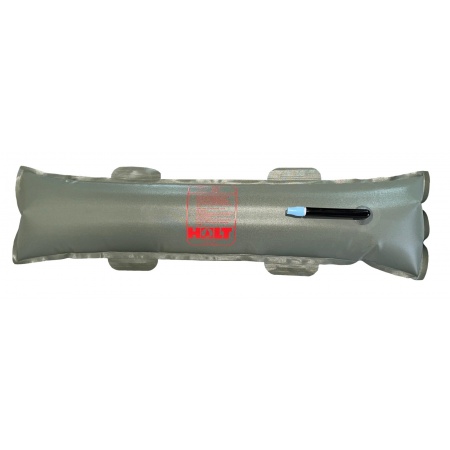

HASB2502

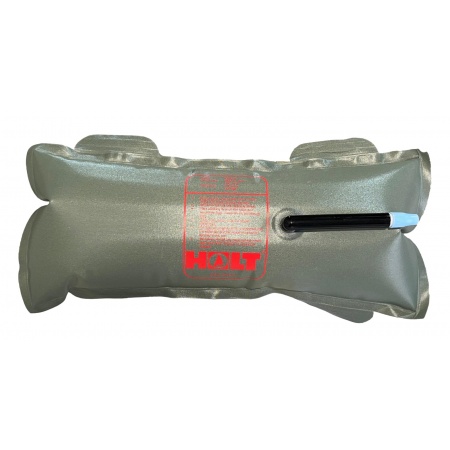

HASB2702
HOLT buoyancy bags made of tough and thoroughly tested heavy duty TPU coated Nylon, shaped and finished to fit snugly in your dinghy, including loops for guiding any webbing retainers and a flexible inflation tube with screw cap and slow return valve to aid inflation.
FITTING INSTRUCTIONS:
After checking that there are no sharp points to snag, they should be firmly secured to the dinghy by webbing straps passing over and round the bag through the positioning loops. Do not use the loops for the actual attachment. Apart from the welded loops, each bag has a flexible screw cap and nozzle with a slow return valve to aid inflation.
FITTING INSTRUCTIONS:
After checking that there are no sharp points to snag, they should be firmly secured to the dinghy by webbing straps passing over and round the bag through the positioning loops. Do not use the loops for the actual attachment. Apart from the welded loops, each bag has a flexible screw cap and nozzle with a slow return valve to aid inflation.
| Art.-No. | L mm | H mm | B mm | buoyancy kg | usage for |
| 830 mm | 355 mm | 915 mm | 158,7 kg | Stern | |
| 1167 mm | Ø 254 mm | 50,8 kg | Sides | ||
| 1400 mm | Ø 456 mm | 80,0 kg | Sides | ||
| 558 mm | Ø 228 mm | 18,1 kg | Sides | ||
| 915 mm | Ø 305 mm | 45,0 kg | Sides | ||
| 990 mm | Ø 230 mm | 34,0 kg | Sides | ||
| 760 mm | Ø 150 mm | 11,3 kg | Sides | ||
| 457 mm | Ø 150 mm | 6,8 kg | Sides |
Short URL: http://lindemann.kg/s/14/VXB
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
