clutches - BARTON

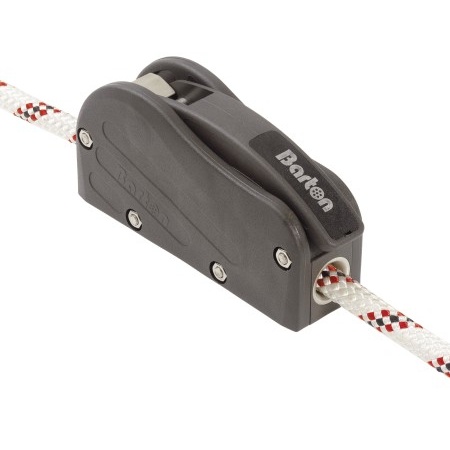

BT81500

BT81500thumb

BT81500

BT81500thumb

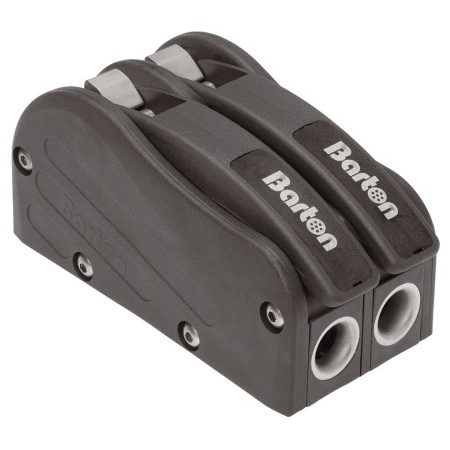

BT81501

BT81501thumb

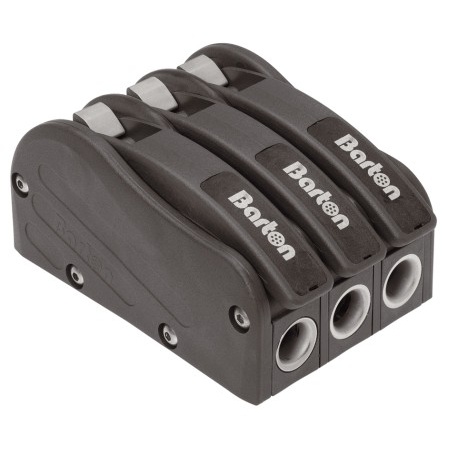

BT81502

BT81502thumb
BT81502thumb

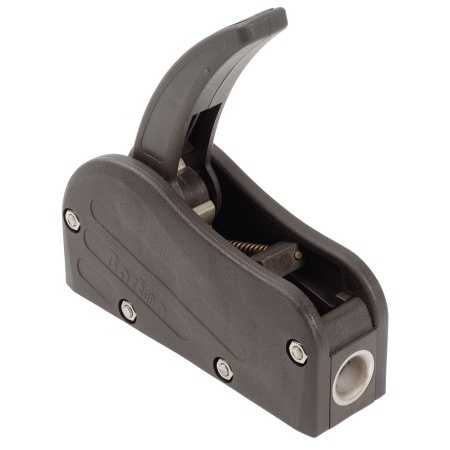

Manufactured from modern lightweight materials, the D0550 moulded parts are from high-grade plastics which are strong, light and impact resistant. Cams and bases are from marine grade aluminium, "Spectro" anodised for long life in the harsh marine environment. This true clutch mechanism allows line to be adjusted in the closed position with minimal slippage, Release under load requires little effort. Stainless steel rope fairleads ar fitted to both line entry and exit points. Bolt-together construction for straightforward servicing.
Art.-Nr.typemax. holding powerL
mm
B
mm
H
mm
LL
mm
fixing
mm
rope Ø
mm
weight
g
single550 kg13338687968 - 12343
double550 kg13365687968 - 12544
triple550 kg13391687968 - 12754

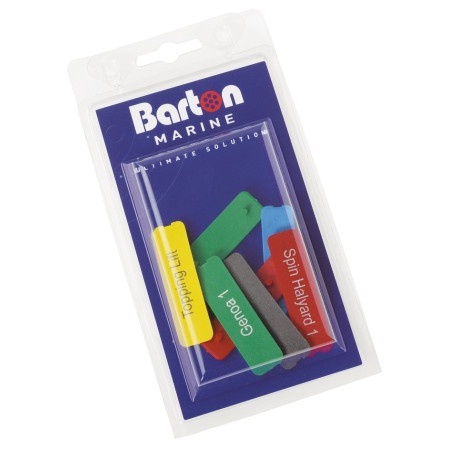

BT81540

BT81540thumb

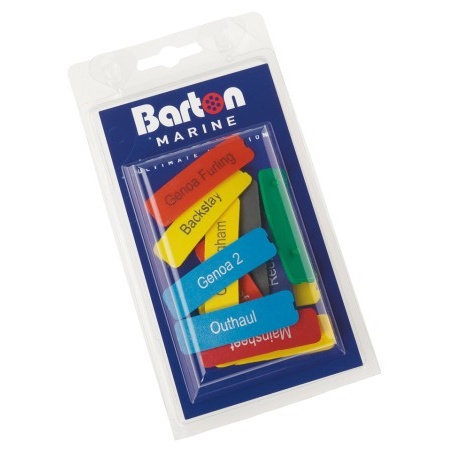

BT81541

BT81541thumb

Short URL: http://lindemann.kg/s/3/QSJ

All article numbers marked in blue can be ordered.

All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
