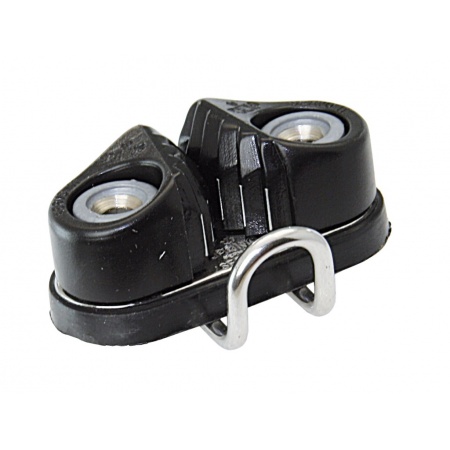

SN11

SN11thumb

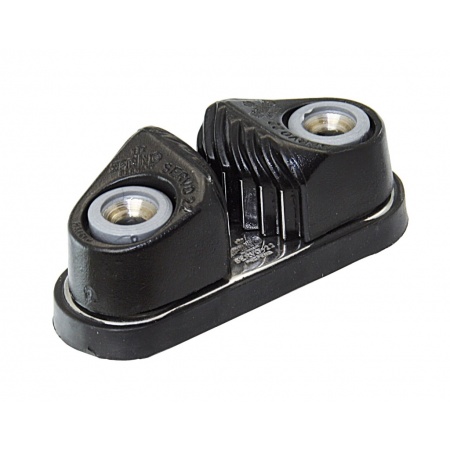

SN22

SN22thumb

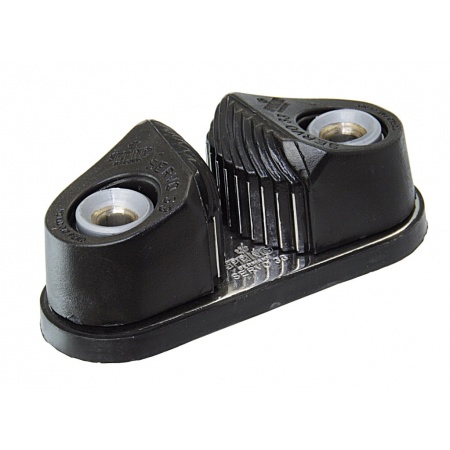

SN33

SN33thumb

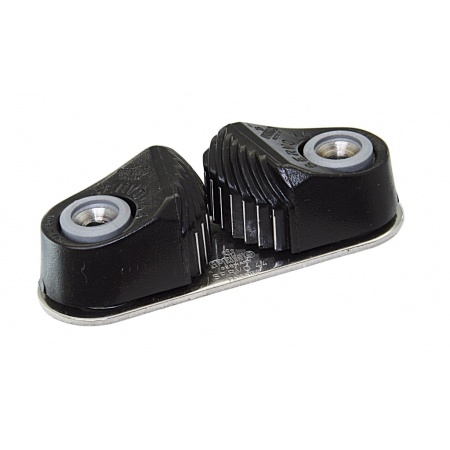

SN44

SN44thumb
SN44thumb
SERVO CLEAT
Material DELRIN, black with stainless steel inserts and stainless steel base.
The rope range serves as an orientation. In the case of hard rope, the range shifts downward, with soft rope climbing upwards.
Art.-No.approx. rope Ø
mm		La
mm		B
mm		LL
mm
4 - 7 mm4722,527SERVO 11
6 - 10 mm7028,042SERVO 22
10 - 14 mm8636,052SERVO 33
6 - 12 mm7929,052SERVO 44

All SERVO Cleats are also available without self service pack

thumb

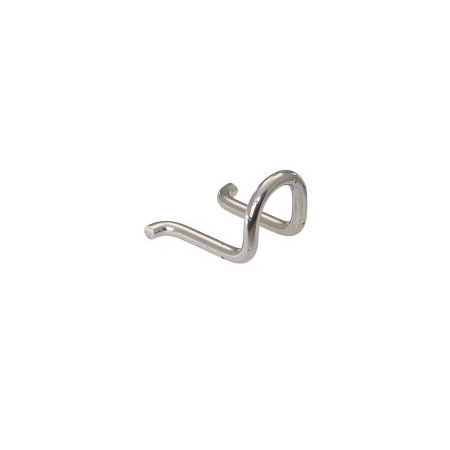

Top fairlead made of stainless steel
Art.-No.use with
SERVO 11
SERVO 22
SERVO 33 & SERVO 44
thumb

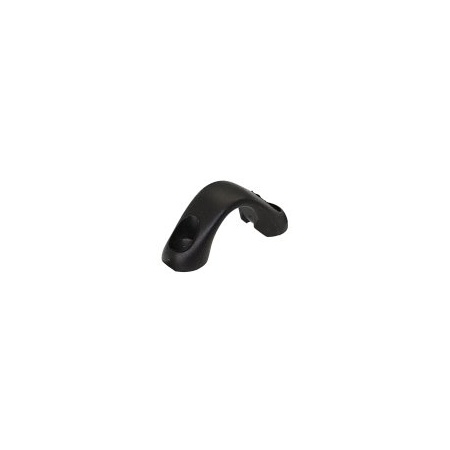

Soft cap, black
Soft caps can only be used together with the correct top fairlead
Art.-No.use with
Top Fairlead SN12
Top Fairlead SN24
thumb

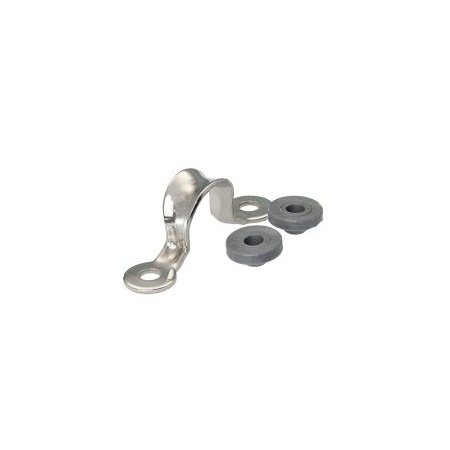

Front dairlead made of stainless steel
without cleat
Art.-No.use with
SERVO 11
SERVO 22
thumb
Parallel base
Art.-No.use with
SERVO 11
SERVO 22
SERVO 33
thumb

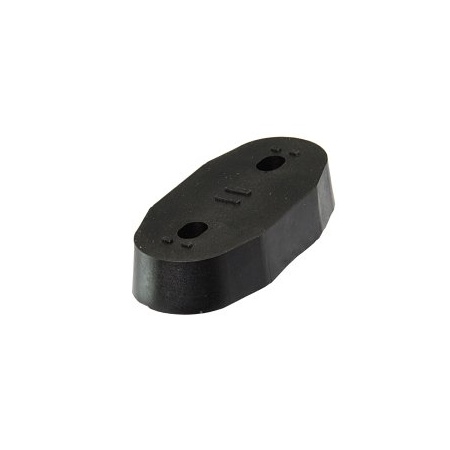

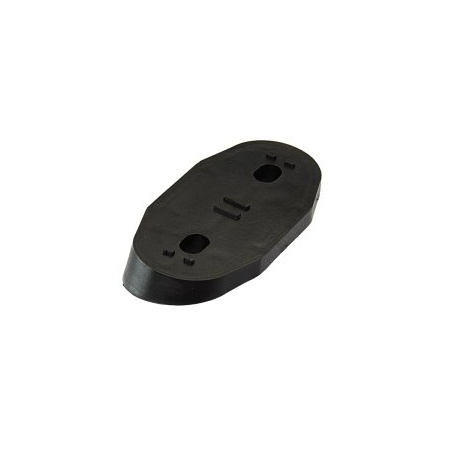

angled base
Art.-No.use with
SERVO 11
SERVO 22
SERVO 33
thumb

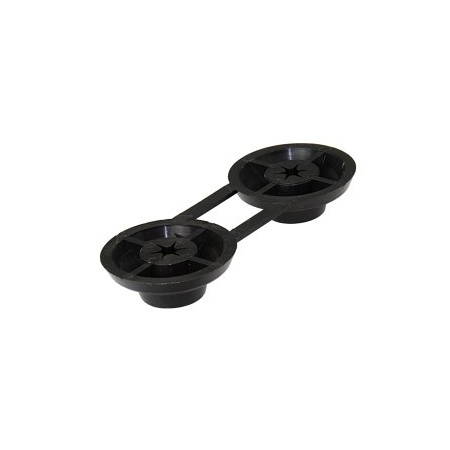

Backing plate
Art.-No.use with
SERVO 11
SERVO 22, SERVO 33, SERVO 44
thumb
Under deck fairlead - Delivery without cleat
Art.-No.use with
SERVO 11
SERVO 22
thumb
Bottom Fairlead
Art.-No.use with
SERVO 22
thumb
Roller fairlead
Art.-No.use with
SERVO 11
SERVO 22
