winches BARTON - nautilus winches
A versatile alternative to conventional aluminium winches, the Barton range of composite winches offer significant cost and weight savings and are truly low maintenance.

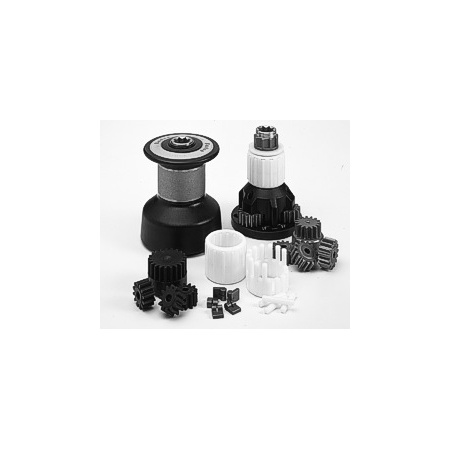

Virtually self lubricating, friction free and corrosion resistant, the ingenious use of advanced materials ensure consistent performance and reliability.

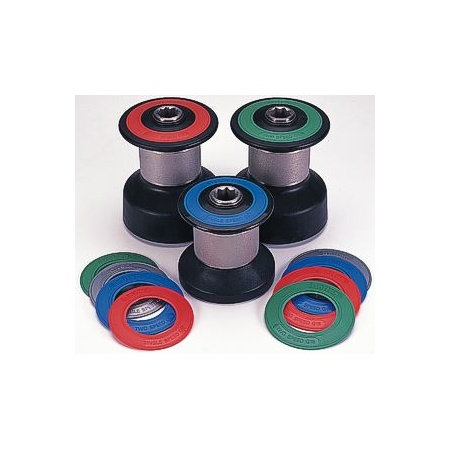

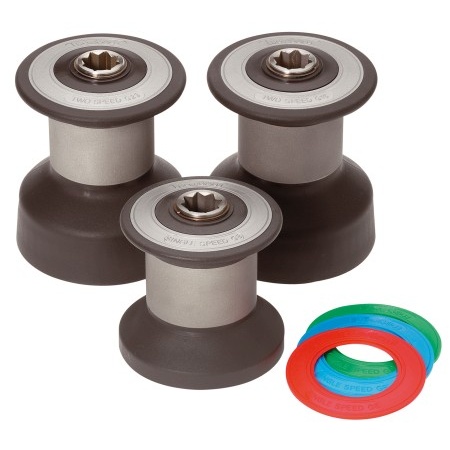

Two models available, a single-speed 8:1 and a twin-speed 16:1. Suitable as primaries for yachts up to 10 m (30 ft)or as spinnaker / halyard winches on larger craft. Coloured top rings are included in red, green and blue.
Virtually self lubricating, friction free and corrosion resistant, the ingenious use of advanced materials ensure consistent performance and reliability.
Two models available, a single-speed 8:1 and a twin-speed 16:1. Suitable as primaries for yachts up to 10 m (30 ft)or as spinnaker / halyard winches on larger craft. Coloured top rings are included in red, green and blue.
| Art.-No. | |||
| Trommel (T) | 66,7mm | 66,7mm | |
| Basis (B) | 101,6mm | 114,3mm | |
| Höhe (H) | 101,6mm | 135,9mm | |
| Leineneingang (L) | 33mm | 59mm | |
| Gewicht | 0,9kg | 1,4kg | |
| Gear Ratio, | 1. Gang | 1 : 1 | 1 : 1 |
| 2. Gang | 2,14 : 1 | ||
| Power Ratio | 1. Gang | 8 : 1 | 16 : 1 |
| Befestigung | Bolzen | 6 x 6mm | 6 x 6mm |
| Lochkreis | 70mm | 82,5mm |
Short URL: http://lindemann.kg/s/3/QMT
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
