anchors - VULCAN

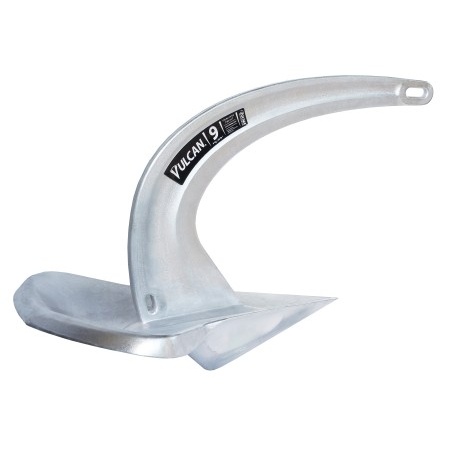

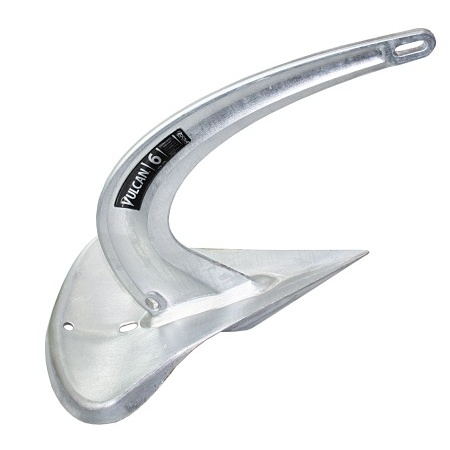

The VULCAN anchor is an evolution of the Rocna anchor. It has the same good properties (high holding force, as well as fast and reliable dig), but is more compact and has a favorable design for anchor holders at the prow and sunbathing platforms.

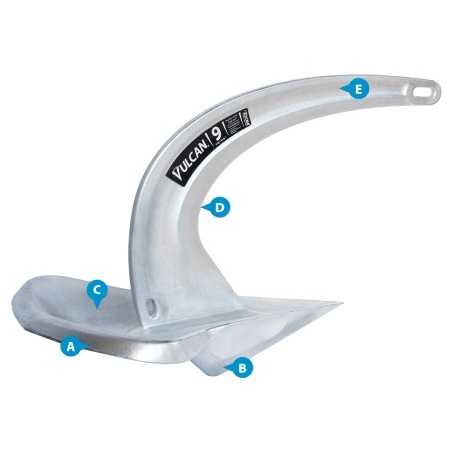

Breaking from the Rocna design, the Vulcan features an unique combination of shank and fluke geometry - including an innovative "roll-palm" (A) which self-rights the anchor on the seabed without the use of a roll-bar.
This is assisted by the "V-bulb" (B) which extends fluke ballast downward to gain maximum leverage and efficiency.
The Concave fluke (C) is similar in design to the Rocna, directly equating to more holding power and security.

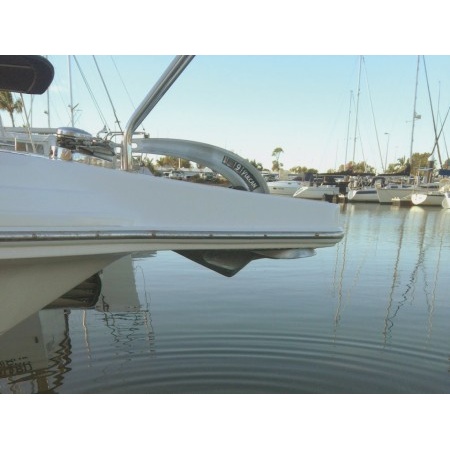

The omission of a roll-bar along with a carefully designed shank profile (D) ensures a snug fit on bowsprits, prods and platforms.
In addition to the use of high tensile steel, shank strength is optimized by a unique "I + V profile" shank design (E), granting improved resistance to bending courtesy of a computer optimized I-beam geometry. This visually elegant innovation also improves setting performance, with the lower "V" edge (F) cutting into the seabed and minimizing resistance to a deep and secure burial.
There are fixing eyes for safety and rescue lines, as well as for a tandem anchor.
Art.-No.weight
kg
Blade areaA
mm
B
mm
C
mm
E
mm
F
mm
S
mm
width
mm
4,0 kg430 cm²4721421454611967258
6,0 kg560 cm²5411631675313677296
9,0 kg730 cm²6191861916115688339
12,0 kg890 cm²6812052106717297373
15,0 kg1030 cm²73422122672185104402
20,0 kg1250 cm²80824324979204115442
25,0 kg1450 cm²87026226885220124476
33,0 kg1740 cm²95528729493241136522
40,0 kg1980 cm²1018306313100257145557


To choose the right size for your Rocna anchor pick out the correct vessel length on the left side on the chart. As second step search for the weight of your yacht. If the correct size is not clear at all please choose the next bigger one. Please also consider the territory where to want to use the anchor. On Multihull yachts please always choose the next bigger size.
 RV004RV006RV009RV012RV015RV020RV025RV033RV040RV055
4 m<= 2 t
5 m<= 1 t<= 5 t
6 m<= 0,5 t<= 3,5 t<= 7 t
7 m<= 0,5 t<= 2 t<= 6 t<= 9 t
8 m <= 1 t<= 5 t<= 8 t<= 12 t
9 m <= 0,5 t<= 4 t<= 7 t<= 10 t<= 16 t
10 m  <= 3 t<= 6 t<= 8,5 t<= 14 t<= 22 t
11 m   <= 5 t<= 7 t<= 12 t<= 20 t
12 m   <= 4 t<= 6 t<= 10 t<= 18 t<= 30 t
14 m    <= 4 t<= 6 t<= 13 t<= 23 t<= 40 t
16 m     <= 3 t<= 9 t<= 18 t<= 32 t<= 60 t
18 m      <= 5 t<= 14 t<= 25 t<= 50 t
20 m       <= 10 t<= 18 t<= 40 t
22 m       <= 6 t<= 12 t<= 33 t
24 m        <= 7 t<= 25 t
26 m         <= 18 t
weight4 kg
9 lbs
6 kg
13 lbs
9 kg
20 lbs
12 kg
27 lbs
15 kg
33 lbs
20 kg
44 lbs
25 kg
55 lbs
33 kg
73 lbs
40 kg
88 lbs
55 kg
121 lbs

Short URL: http://lindemann.kg/s/5/QGo

All article numbers marked in blue can be ordered.

All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
