Anchor Windlasses - Anchor Windlasses - Genius GP2

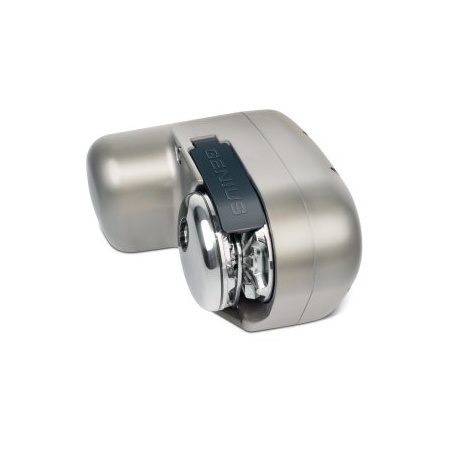

QUICK Genius GP2
On-deck windlasses
in anodized alluminium in hard oxide
Rope and chain on a single gypsy
Manual Free-Fall system
Supplied with pressure lever
Epicyclical gearbox
On-deck windlasses
in anodized alluminium in hard oxide
Rope and chain on a single gypsy
Manual Free-Fall system
Supplied with pressure lever
Epicyclical gearbox
| Art.-No. (without drum) | ||||

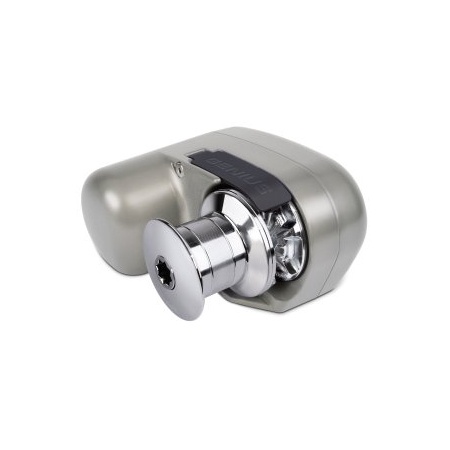

| Art.-No. (with drum) | - | - | - | |
| for boat length *) | 6 - 10 m | 8 - 13 m | 8 - 13 m | 8 - 13 m |
| Motor output | 500 W | 800 W | 800 W | 800 W |
| Voltage | 12 V | 12 V | 12 V | 24 V |
| Max. pull | 680 kg | 900 kg | 900 kg | 900 kg |
| working load (max.) | 85 kg (250 kg) | 120 kg (350 kg) | 120 kg (350 kg) | 120 kg (350 kg) |
| Current draw | 76 A | 96 A | 96 A | 50 A |
| max. chain speed | 83,7 ft / min. | 97,1 ft / min. | 97,1 ft / min. | 97,1 ft / min. |
| Gypsy | 6 mm DIN766 6 mm ISO | 6 mm DIN766 6 mm ISO | 8 mm DIN766 8 mm ISO | 8 mm DIN766 8 mm ISO |
| Rope | 12 mm | 12 mm | 12 mm | 12 mm |
*) The indication may vary according to the boat type and the anchor rode type.
Short URL: http://lindemann.kg/s/5/VPp
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
