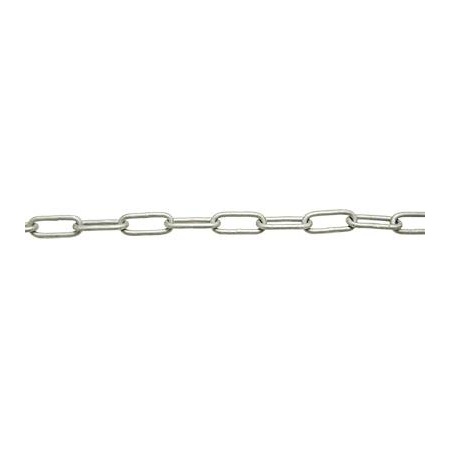

chains - long linked - Hot galvanized
Chain hot galvanized, long linked acc. DIN5685C, untested, cut length
| Art.-No. | Chain-Ø mm | Bi mm | Li mm | Beanspru- chungsgrenze | weight kg/100m | bunch length m |
| 5 mm | 9,0 | 35 | 127 kg | 43 | 50 m | |
| 6 mm | 10,8 | 42 | 163 kg | 63 | 50 m | |
| 8 mm | 14,4 | 52 | 326 kg | 110 | 50 m |
The chains according to this standard are not tested for strength. The stated loading limits are only calculated values.
Chain hot galvanized, long linked acc. DIN5685C, untested,whole length
| Art.-No. | Chain-Ø mm | Bi mm | Li mm | Beanspru- chungsgrenze | weight kg/100m | bunch length m |
| 5 mm | 9,0 | 35 | 127 kg | 43 | 50 m | |
| 6 mm | 10,8 | 42 | 163 kg | 63 | 50 m | |
| 8 mm | 14,4 | 52 | 326 kg | 110 | 50 m | |
| 10 mm | 18,0 | 65 | 510 kg | 175 | 50 m |
The chains according to this standard are not tested for strength. The stated loading limits are only calculated values.
Short URL: http://lindemann.kg/s/5/VFo
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
