battery switches and terminal - Battery switch Blue Sea Systems - L-Series Solenoid Switch

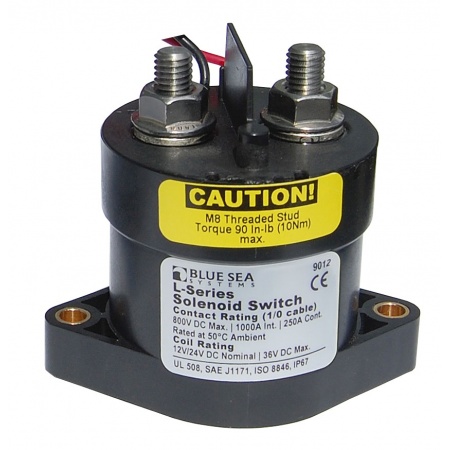

Blue Sea Systems Solenoid Switch L-Series
• Voltage 12 / 24 V (max 36 V)
• 250 A - Countinous, 275 A - 5 min. Intermittend, 1000 A - 30 sec. Cranking
• Connection 2x 10 mm (3/8")
• Height 56,1 mm
• Footprint 80,5 x 72,6 mm
• Voltage max. 800V DC
• Voltage 12 / 24 V (max 36 V)
• 250 A - Countinous, 275 A - 5 min. Intermittend, 1000 A - 30 sec. Cranking
• Connection 2x 10 mm (3/8")
• Height 56,1 mm
• Footprint 80,5 x 72,6 mm
• Voltage max. 800V DC
| Art.-No. | Operating temperature | Voltage | Weight kg |
| -55°C - +85°C | 9V - 36V | 0,41 kg |
Short URL: http://lindemann.kg/s/6/Vcr
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
