battery switches and terminal - Battery switch Blue Sea Systems - MaxiBus 250A Common BusBar

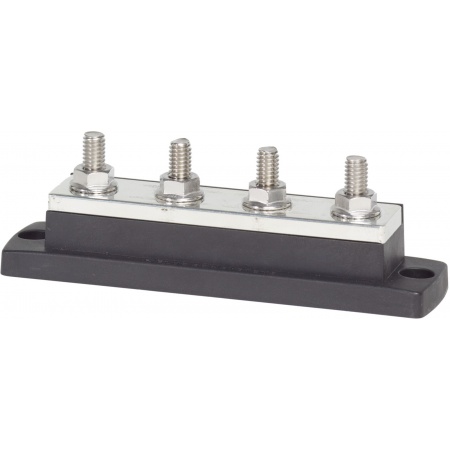

Blue Sea Systems MaxiBus - 250A Common BusBars
Insert-molded stainless steel studs and optional fully enclosed insulating base and cover
• Insulating cover with breakouts for easy wire access
• Insulating cover meets ABYC insulation requirements
• One-piece serrated flange nuts ensure correct and secure connections
Insert-molded stainless steel studs and optional fully enclosed insulating base and cover
• Insulating cover with breakouts for easy wire access
• Insulating cover meets ABYC insulation requirements
• One-piece serrated flange nuts ensure correct and secure connections

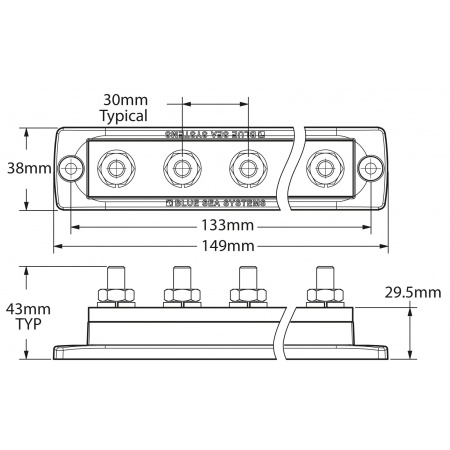

| Art.-No. unpacked | Ø Stud | Terminal Screws | Cover | L mm | B mm | Voltage V | current A |
| 4x 5/16" | - | no | 149,0 | 38,0 | 300 V 48 V | 250 A |
Short URL: http://lindemann.kg/s/6/Vd4
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
