Blue Sea Systems MiniBus - 100A Common BusBars
Provides busing for limited space applications
• One-piece serrated flange nut ensures correct and secure connections

Art.-No.	Ø Stud	Terminal Screws	Cover	L mm	B mm	Voltage V	current A

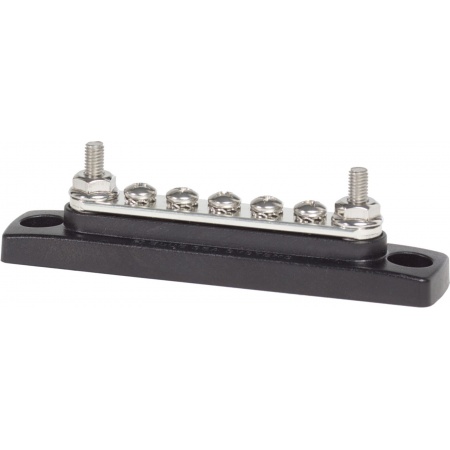

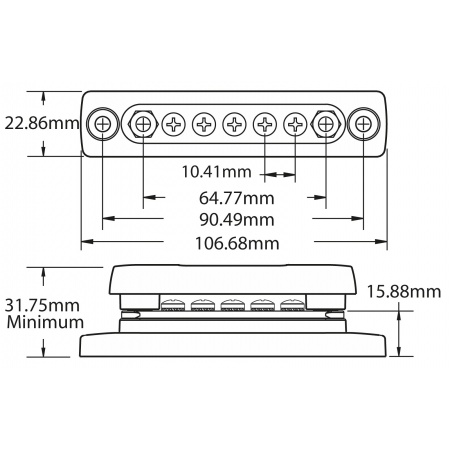

BS2304 BLUE SEA Sammelschiene Mini 100A, 5 Anschlüsse Price (EUR): € 14,80 per pc. on stock	2x #10-32	5x #8-32	no	106,7 mm	22,9 mm	300 V / 48 V	100 A

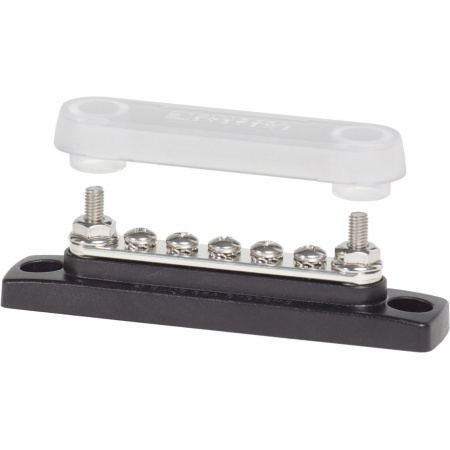

BS2314 BLUE SEA Sammelschiene Mini 100A, 5 Anschlüsse, m. Abdeck. Price (EUR): € 17,60 per pc. on stock	2x #10-32	5x #8-32	yes	106,7 mm	22,9 mm	300 V / 48 V	100 A

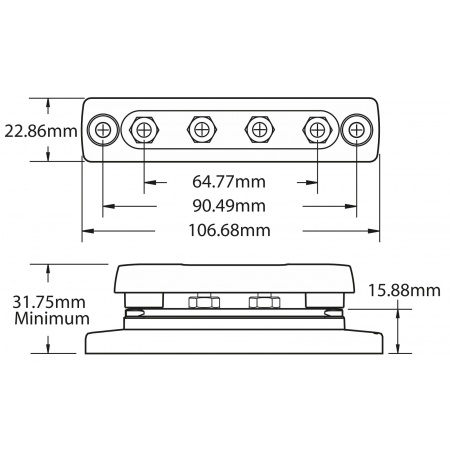

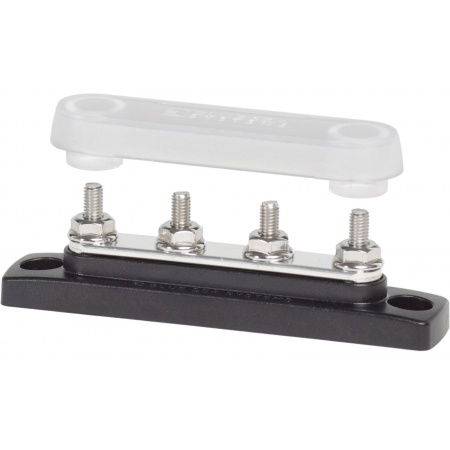

BS2315 BLUE SEA Sammelschiene Mini 100A, 4x 10-32 Bolzen, m. Abdeck. Price (EUR): € 20,20 per pc. on stock	4x #10-32	-	yes	106,7 mm	22,9 mm	300 V / 48 V	100 A

Short URL: http://lindemann.kg/s/6/Vd1

All article numbers marked in blue can be ordered.

All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
