Cable and installation - Cable lugs

Screw cable lugs acc. to DIN46227 E-CU acc. EN13600, stamped, blank pickled with galvanized steel bolts DIN84/DIN933

Art.-No. VP à 2	cable Ø mm	thread	hold brackets	bolts

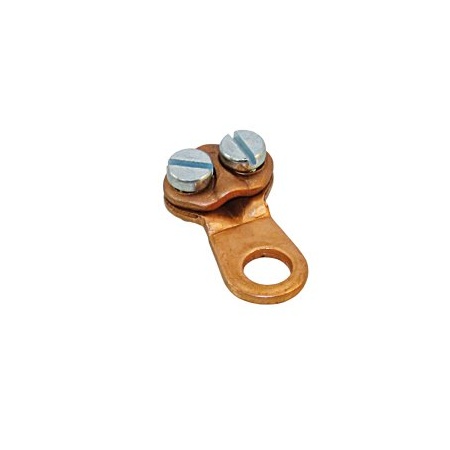

PQ11608-2SB Schraubkabelschuh f.10-16mm² M8 Ø (2-St.VP) Price (EUR): € 11,00 per VP on stock	10 - 16 mm	M8	1	2

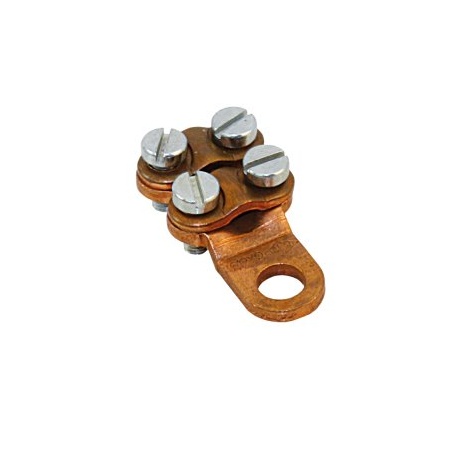

PQ22508-2SB Schraubkabelschuh f.16-25mm² M8 Ø (2 St.VP) Price (EUR): € 18,50 per VP on stock	16 - 25 mm	M8	2	4
PQ22510-2SB Schraubkabelschuh f.16-25mm² M10 Ø (2St.-VP) Price (EUR): € 20,00 per VP on stock	16 - 25 mm	M10	2	4
PQ23508-2SB Schraubkabelschuh f.25-35mm² M8 Ø (2 St.VP) Price (EUR): € 20,00 per VP on stock	25 - 35 mm	M8	2	4
PQ23510-2SB Schraubkabelschuh f.25-35mm² M10 Ø (2-St.VP) Price (EUR): € 22,50 per VP on stock	25 - 35 mm	M10	2	4
PQ25010-2SB Schraubkabelschuh f.35-50mm² M10 Ø (2-St.VP) Price (EUR): € 28,50 per VP on stock	35 - 50 mm	M10	2	4

Short URL: http://lindemann.kg/s/6/QbH

All article numbers marked in blue can be ordered.

All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
