Cable and installation - terminal block (bus bars)
BS2402
BS2406
BS2410
BS9218
Blue Sea Systems
Terminal Blocks
Fully insulated independent terminal blocks
• Each screw pair is one isolated circuit
• Terminal Block Jumpers allow creation of common circuits
• Closed back design insulates power from the mounting surface
Terminal Blocks
Fully insulated independent terminal blocks
• Each screw pair is one isolated circuit
• Terminal Block Jumpers allow creation of common circuits
• Closed back design insulates power from the mounting surface
| Art.-No. | Art.-No. unpacked | Terminal Screws | L mm | LL mm | current A | Voltage V |
| - | 2 | 36,2 mm | 28,7 mm | 2x 20 A | max. 300 V | |
| - | 4 | 55,0 mm | 47,6 mm | 4x 20 A | max. 300 V | |
| - | 6 | 74,0 mm | 66,6 mm | 6x 20 A | max. 300 V | |
| - | 8 | 93,0 mm | 85,6 mm | 8x 20 A | max. 300 V | |
| - | 10 | 112,0 mm | 104,6 mm | 10x 20 A | max. 300 V | |
| - | Jumper for terminal blocks | |||||
Terminal block (Bus bars) on heavy duty plastic base. Stud terminals and screws in brass.
| Art.-No. | max. current A | max. power V | gang | base mm | Material Base |
| 100 A | 48 V | 5 | 107 x 22 x 35 mm | ABS | |
| 150 A | 48 V | 6 | 230 x 32 x 35 mm | ABS | |
| 150 A | 48 V | 10 | 146 x 32 x 27 mm | PBT | |
| 150 A | 48 V | 20 | 225 x 32 x 29 mm | Bakelit | |
| 250 A | 48 V | 12 | 201 x 38 x 41 mm | PC |

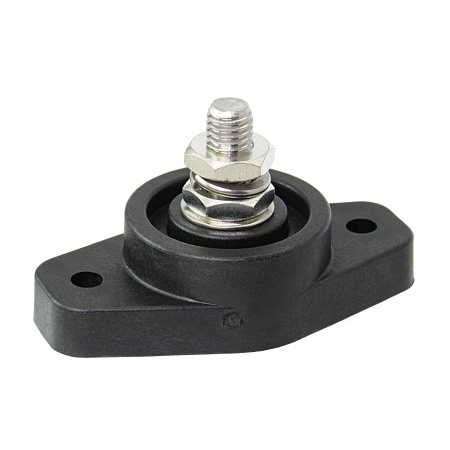

EK20711

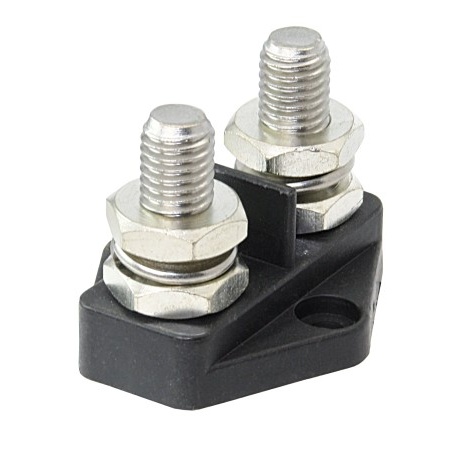

EK10723
PowerPosts on glassfilled nylon base, tin plated nuts, stainless steel washers and studs.
Short URL: http://lindemann.kg/s/6/QbZ
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
