Navigation lights - HELLA Series 2984 - Side Mount
HELLA Series 2984
Internationally approved navigation lamps.
• Non-magnetic
• Saltwater resistant.
It features a "Snap Lock" housing allowing bulbs to be changed without tools. The bulb is positioned in a hanging position to avoid corrosion.
Bulb: 12 V / 25 W - BAY15d included
Protection: IP55
Mounting: Vertical surface mount
Size: H = 108 / B = 107 / T = 90 mm
Internationally approved navigation lamps.
• Non-magnetic
• Saltwater resistant.
It features a "Snap Lock" housing allowing bulbs to be changed without tools. The bulb is positioned in a hanging position to avoid corrosion.
Bulb: 12 V / 25 W - BAY15d included
Protection: IP55
Mounting: Vertical surface mount
Size: H = 108 / B = 107 / T = 90 mm
Art.-No. | Text | visibility | colour housing | |||

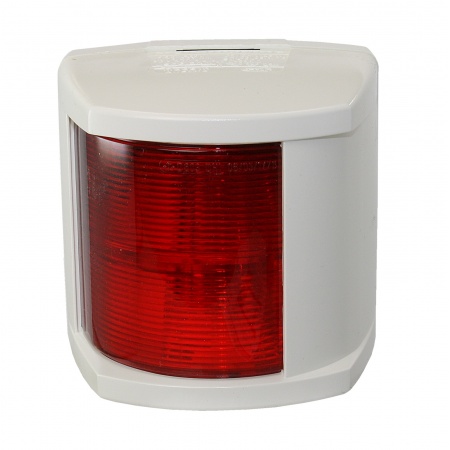

port | 2nm | 12 V | 25 W | |||
port | 2nm | 12 V | 25 W | |||

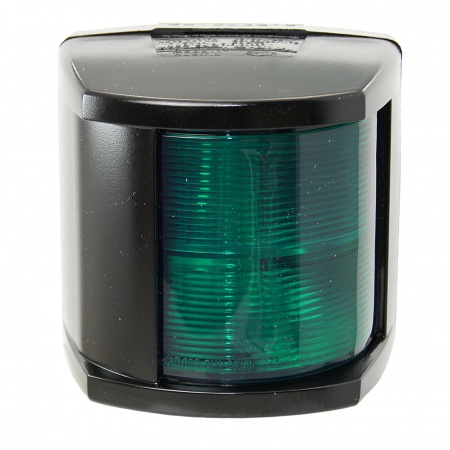

starboard | 2nm | 12 V | 25 W | |||
starboard | 2nm | 12 V | 25 W | |||

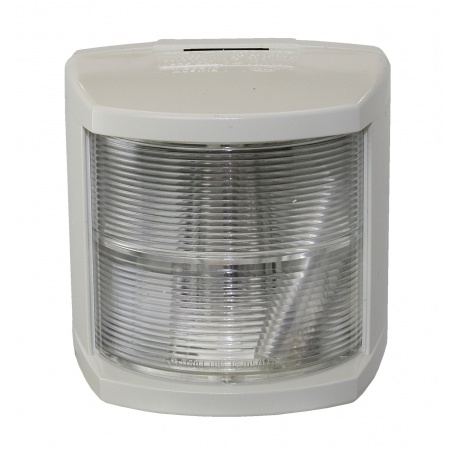

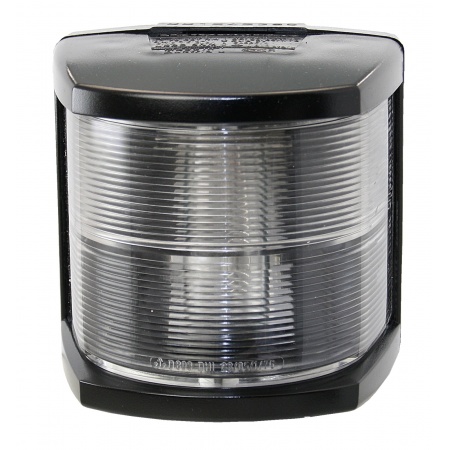

stern (white light) | 2nm | 12 V | 10 W | |||
stern (white light) | 2nm | 12 V | 10 W | |||
Masthead (white light) | 3nm | 12 V | 25 W | |||
Masthead (white light) | 3nm | 12 V | 25 W | |||

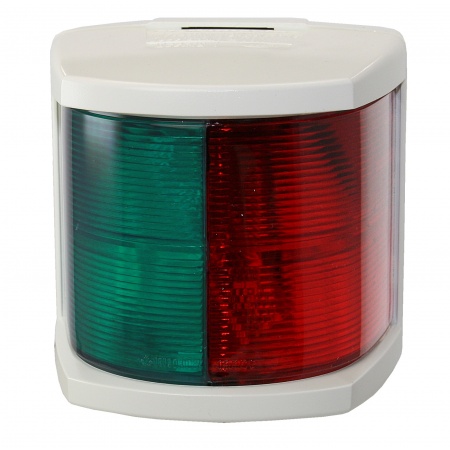

Bi-Color | 2nm | 12 V | 25 W | |||
Bi-Color | 2nm | 12 V | 25 W |
Approvals:
• IMO COLREG
• USCG
• RINA
• ABYC A-16
• BSH
• RCD
• IMO COLREG
• USCG
• RINA
• ABYC A-16
• BSH
• RCD
Art.-No. | Text | colour housing | V | W | socket |

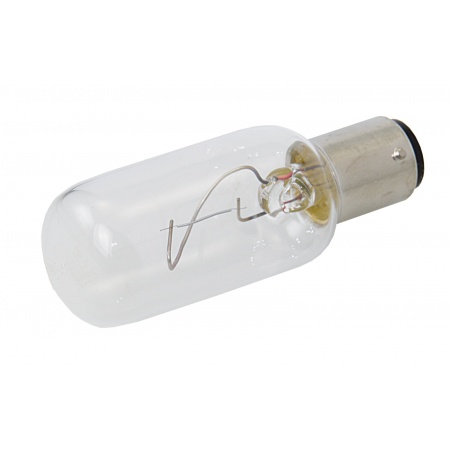

Bulb | - | 12 V | 10 W | BAY 15d | |
Bulb | - | 24 V | 10 W | BAY 15d | |
Bulb | - | 12 V | 25 W | BAY 15d | |
Bulb | - | 24 V | 25 W | BAY 15d | |

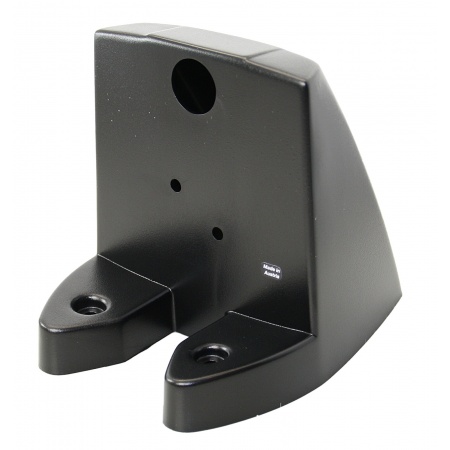

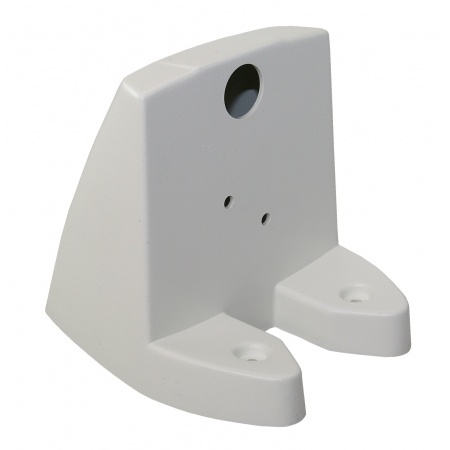

Mounting Socket | - | - | - | ||
Mounting Socket | - | - | - |
