Navigation lights - HELLA Series 3562

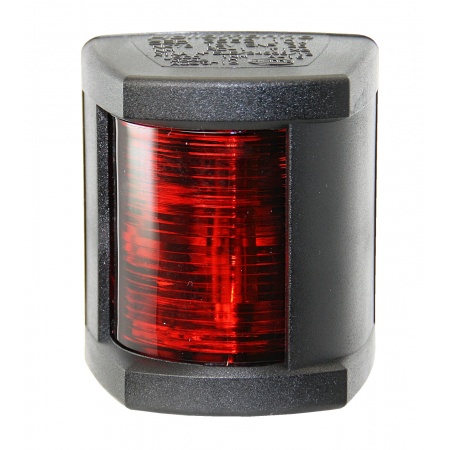

HL003562035

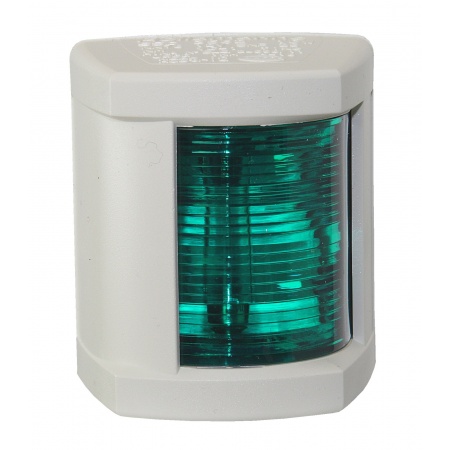

HL003562125

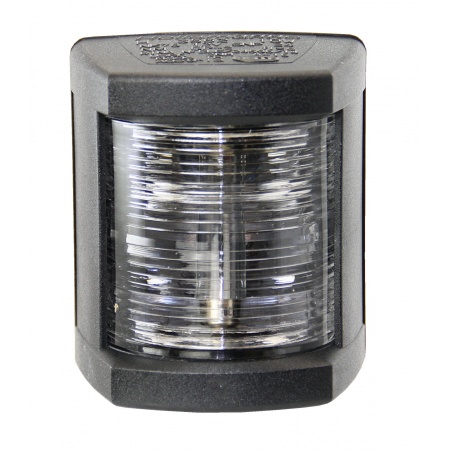

HL003562015

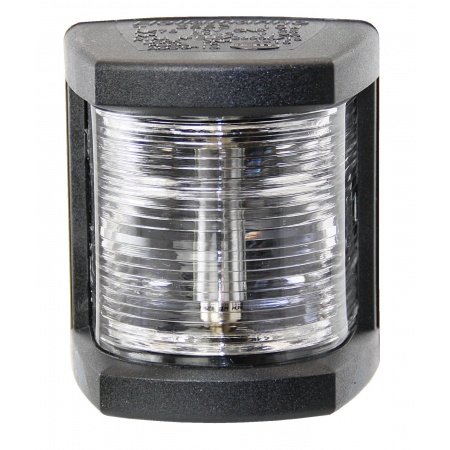

HL003562005

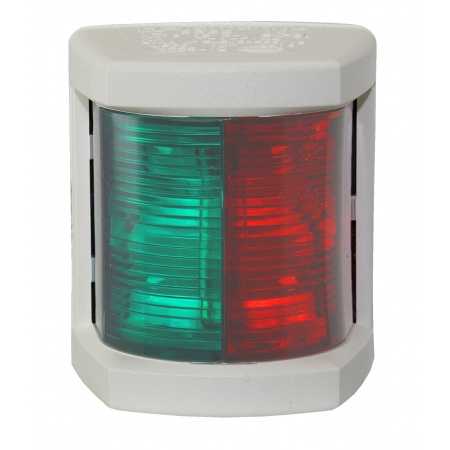

HL003562145
HELLA Series 3562
Compact and proven navigation lamps for yachts and power boats. Saltwater resistant and Non-magnetic. Series 3562 features a "Snap Lock" housing allowing bulbs to be changed without tools.
Bulb: 12 V / 10 W Soffit SV8.5 included
Protection: IP54
Mounting: Vertical surface mount

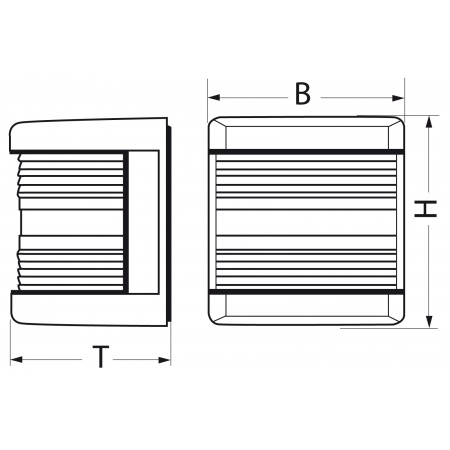

Size: H = 75 / B = 63 / T = 53 mm
Compact and proven navigation lamps for yachts and power boats. Saltwater resistant and Non-magnetic. Series 3562 features a "Snap Lock" housing allowing bulbs to be changed without tools.
Bulb: 12 V / 10 W Soffit SV8.5 included
Protection: IP54
Mounting: Vertical surface mount
Size: H = 75 / B = 63 / T = 53 mm
| Art.-No. | Text | visibility | colour housing | ||
| port | 1nm | 12 V |  |  | |
| port | 1nm | 12 V |  | | |
| starboard | 1nm | 12 V | |  | |
| starboard | 1nm | 12 V | | | |
| stern (white light) | 2nm | 12 V | |  | |
| stern (white light) | 2nm | 12 V | | | |
| Masthead (white light) | 2nm | 12 V | |  | |
| Masthead (white light) | 2nm | 12 V | | | |
| Bi-Color | 1nm | 12 V | |  | |
| Bi-Color | 1nm | 12 V | | |
Approvals:
• IMO COLREG
• USCG
• ABYC A-16
• RCD
• IMO COLREG
• USCG
• ABYC A-16
• RCD

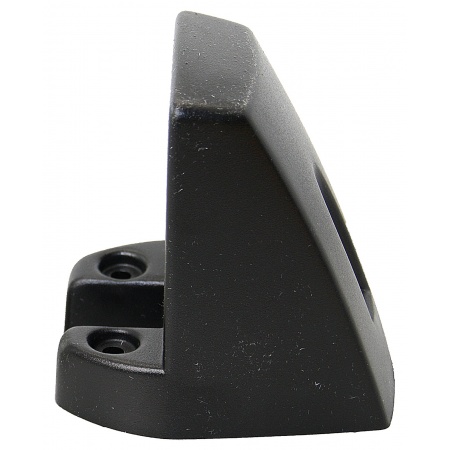

HL005799001

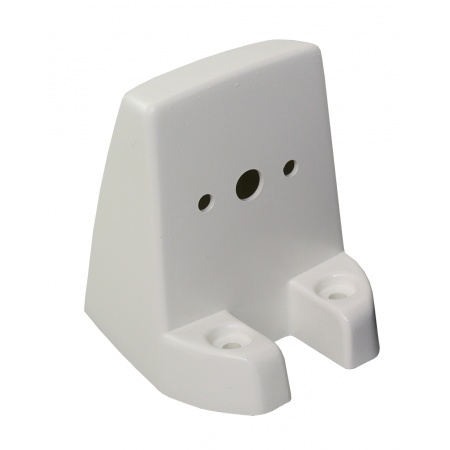

HL005799011

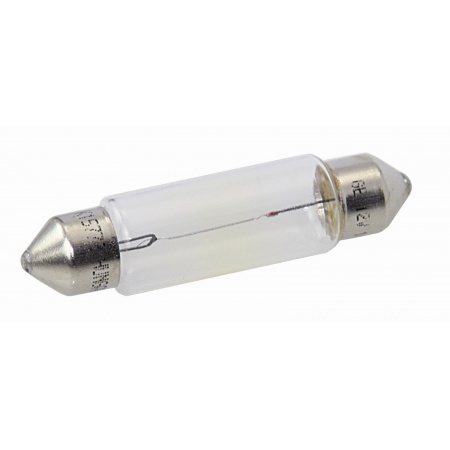

HL002091131
| Art.-No. | Text | colour housing |
| Mounting Socket | | |
| Mounting Socket | | |
| replacement bulb |
Short URL: http://lindemann.kg/s/6/VN2
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
