safety accessories - Circuit Breakers - 187-Series
BS7044
Blue Sea Systems

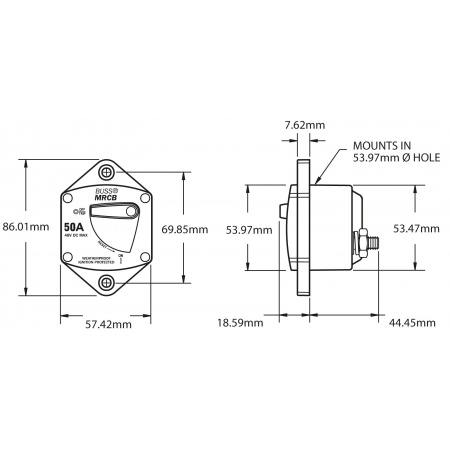

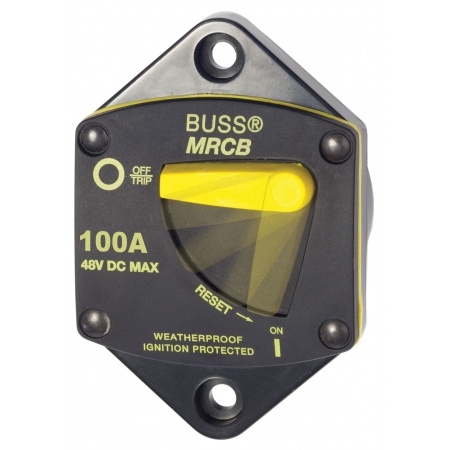

187-Series Circuit Breakers - recess mounting
Provides circuit protection for 25A to 200A loads when switching and circuit protection are both required
• Self-trimming case eliminates need for mounting panels or trim bezels
• Visible yellow reset lever shows open condition
• Trip-free design cannot be held closed after trip
• Large clearance around terminal studs accepts up to 1/0 AWG lugs
• Recessed mounting holes for clean appearance
• Robust 5/16"-18 terminals provide high torque connections
• 5,000A AIC for large battery banks
187-Series Circuit Breakers - recess mounting
Provides circuit protection for 25A to 200A loads when switching and circuit protection are both required
• Self-trimming case eliminates need for mounting panels or trim bezels
• Visible yellow reset lever shows open condition
• Trip-free design cannot be held closed after trip
• Large clearance around terminal studs accepts up to 1/0 AWG lugs
• Recessed mounting holes for clean appearance
• Robust 5/16"-18 terminals provide high torque connections
• 5,000A AIC for large battery banks
| Art.-No. | Art.-No. unpacked | Current A | Voltage V |
| 40 A | max. 48 V | ||
| - | 60 A | max. 48 V | |
| - | 80 A | max. 48 V | |
| - | 100 A | max. 48 V | |
| - | 120 A | max. 48 V | |
| 200 A | max. 48 V |
BS7142
Blue Sea Systems

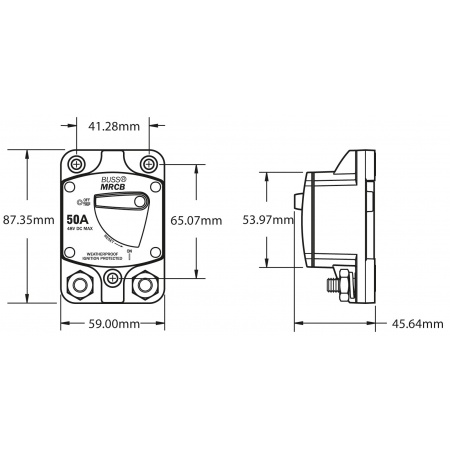

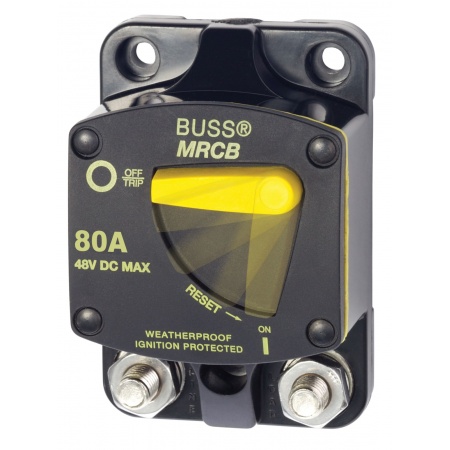

187-Series Circuit Breakers - Surface mounting
Provides circuit protection for 25A to 200A loads when switching and circuit protection are both required
• Self-trimming case eliminates need for mounting panels or trim bezels
• Visible yellow reset lever shows open condition
• Trip-free design cannot be held closed after trip
• Large clearance around terminal studs accepts up to 1/0 AWG lugs
• Recessed mounting holes for clean appearance
• Robust 5/16"-18 terminals provide high torque connections
• 5,000A AIC for large battery banks
187-Series Circuit Breakers - Surface mounting
Provides circuit protection for 25A to 200A loads when switching and circuit protection are both required
• Self-trimming case eliminates need for mounting panels or trim bezels
• Visible yellow reset lever shows open condition
• Trip-free design cannot be held closed after trip
• Large clearance around terminal studs accepts up to 1/0 AWG lugs
• Recessed mounting holes for clean appearance
• Robust 5/16"-18 terminals provide high torque connections
• 5,000A AIC for large battery banks
| Art.-No. unpacked | Current A | Voltage V |
| 80 A | max. 48 V | |
| 150 A | max. 48 V | |
| 200 A | max. 48 V |
Short URL: http://lindemann.kg/s/6/VdN
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
