safety accessories - fuse box - Blue Sea ANL Fuse Box

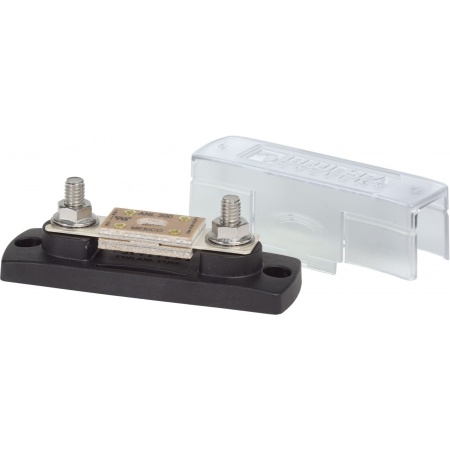

BS5005

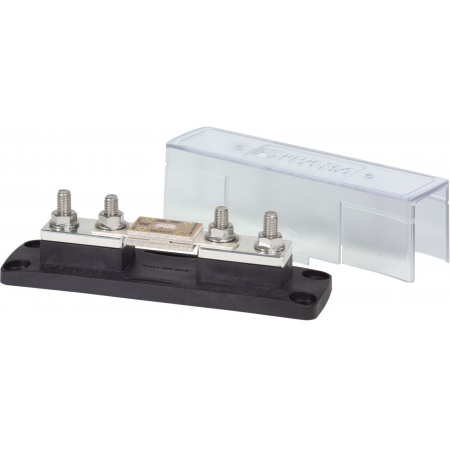

BS5503
Blue Sea Systems
ANL® Fuse Blocks
Accepts a wide range of ANL fuse amperages for versatile fusing
• Swing out design allows replacement of the fuse without removing fasteners
• Insulating cover satisfies ABYC/USCG insulation requirements
• Cover breakouts allow wire access in any direction
• Insert molded studs ensure secure fuse mounting
• Stainless steel studs provide resistance to corrosion and high torque
• One-piece stainless flange nuts ensure safe and secure connections
• UL 94-V0 base resists high heat
ANL® Fuse Blocks
Accepts a wide range of ANL fuse amperages for versatile fusing
• Swing out design allows replacement of the fuse without removing fasteners
• Insulating cover satisfies ABYC/USCG insulation requirements
• Cover breakouts allow wire access in any direction
• Insert molded studs ensure secure fuse mounting
• Stainless steel studs provide resistance to corrosion and high torque
• One-piece stainless flange nuts ensure safe and secure connections
• UL 94-V0 base resists high heat
| Art.-No. | Art.-No. unpacked | fuses | Current A | Voltage V |
| 1 | max 300 A | 12 - 32 V | ||
| 1 | max 750 A | 12 - 32 V |
Short URL: http://lindemann.kg/s/6/VdI
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
