safety accessories - fuse box - Blue Sea MRBF Fuse Box

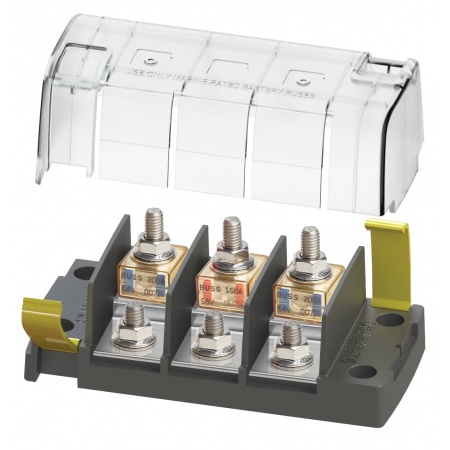

BS5194

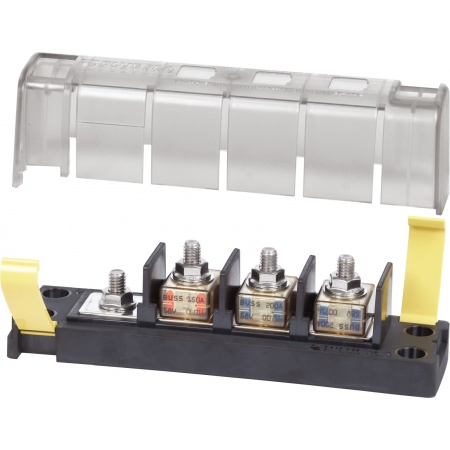

BS5196
Blue Sea Systems
MRBF Surface Mount Fuse Blocks
MRBF—Marine Rated Battery Fuse
• Surface mount fuse blocks accommodate three MRBF fuses for consolidated high amperage circuit protection
• The independent source fuse block (BS5194) is ideal for 3 output battery chargers
• The common source fuse block (BS5196) provides 3 loads from a single source
• Clip-on cover insulates terminal connections
• Versatile wiring options allow all wires to come out a single side
• Label recesses for easy circuit identification
• One-piece stainless flange nuts ensure safe and secure connections
• Ignition protected when used with MRBF fuses
MRBF Surface Mount Fuse Blocks
MRBF—Marine Rated Battery Fuse
• Surface mount fuse blocks accommodate three MRBF fuses for consolidated high amperage circuit protection
• The independent source fuse block (BS5194) is ideal for 3 output battery chargers
• The common source fuse block (BS5196) provides 3 loads from a single source
• Clip-on cover insulates terminal connections
• Versatile wiring options allow all wires to come out a single side
• Label recesses for easy circuit identification
• One-piece stainless flange nuts ensure safe and secure connections
• Ignition protected when used with MRBF fuses

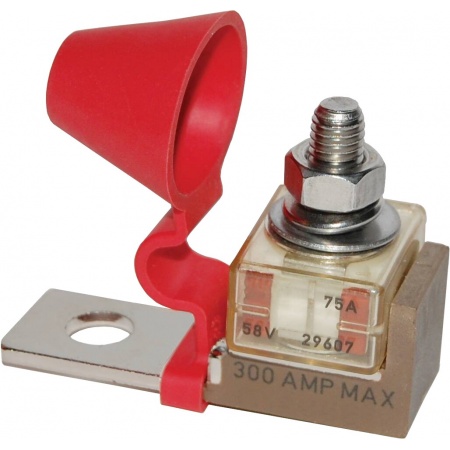

BS5191

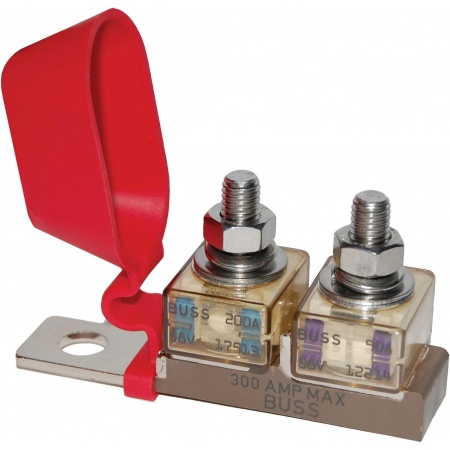

BS2151
Blue Sea Systems
MRBF Terminal Fuse Blocks
MRBF—Marine Rated Battery Fuse
Satisfies ABYC 7" circuit protection rule by mounting on a 3/8" battery post, battery switch, or bus bar
• Appropriate for DC Main, inverter, windlass, and bow thruster circuit protection
• Weatherproof – suitable for small open-cockpit boats and other harsh environments
• Insulating cap prevents accidental shorts
• Ignition protected when used with MRBF fuses
MRBF Terminal Fuse Blocks
MRBF—Marine Rated Battery Fuse
Satisfies ABYC 7" circuit protection rule by mounting on a 3/8" battery post, battery switch, or bus bar
• Appropriate for DC Main, inverter, windlass, and bow thruster circuit protection
• Weatherproof – suitable for small open-cockpit boats and other harsh environments
• Insulating cap prevents accidental shorts
• Ignition protected when used with MRBF fuses
| Art.-No. | Art.-No. unpacked | fuses | Current A | Voltage V |
| 1 | max 300 A | max 58 V | ||
| - | 2 | max 300 A | max 58 V |
