safety accessories - fuse box - Blue Sea ST-Blade Compakt Fuse Box
BS5045
BS5045
BS5046
BS5046
Blue Sea Systems

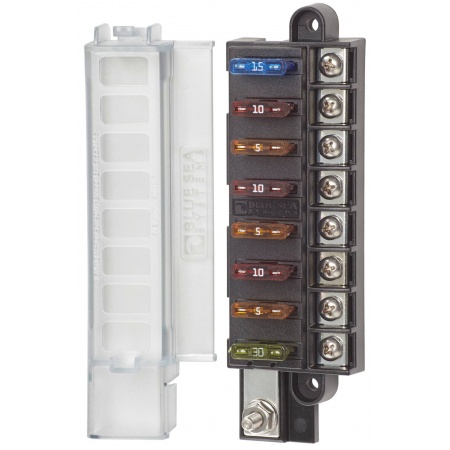

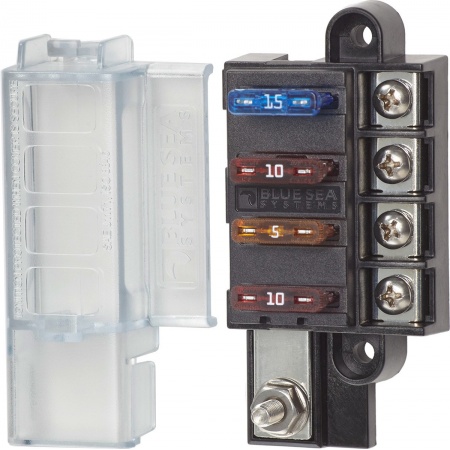

ST-Blade Compact Fuse Blocks
Common Source
Provides surface mount circuit protection for ATO or ATC Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space
• Compact common source fuse blocks
• Accepts ATO and ATC fast acting blade fuses
• Single side entry wiring
• Ignition Protected - for use in a gasoline engine compartment
• Insulating cover meets ABYC/USCG insulation requirements
• Tin-plated copper buses and fuse clips
• Accepts ring or snap fork type terminals
• Includes write-on circuit labels for each circuit
ST-Blade Compact Fuse Blocks
Common Source
Provides surface mount circuit protection for ATO or ATC Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space
• Compact common source fuse blocks
• Accepts ATO and ATC fast acting blade fuses
• Single side entry wiring
• Ignition Protected - for use in a gasoline engine compartment
• Insulating cover meets ABYC/USCG insulation requirements
• Tin-plated copper buses and fuse clips
• Accepts ring or snap fork type terminals
• Includes write-on circuit labels for each circuit
| Art.-No. | Art.-No. unpacked | fuses | A per circuit / block | Voltage V |
| 4 | 30 A / 100 A | 12 - 32 V | ||
| 8 | 30 A / 100 A | 12 - 32 V |
