safety accessories - fuse box - Blue Sea ST-Blade Common Source Fuse Box

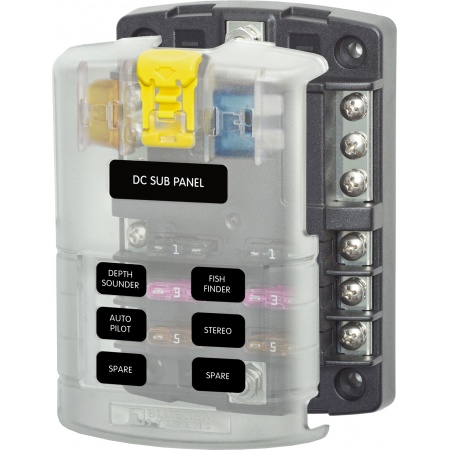

BS5025

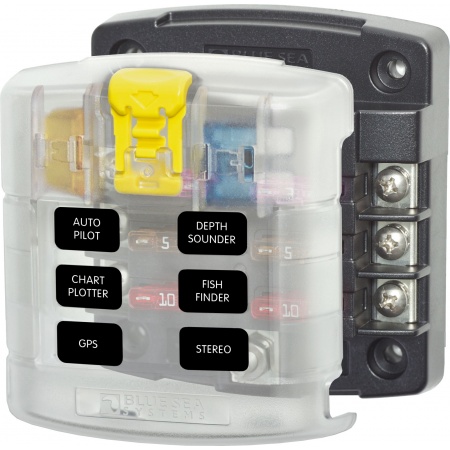

BS5028

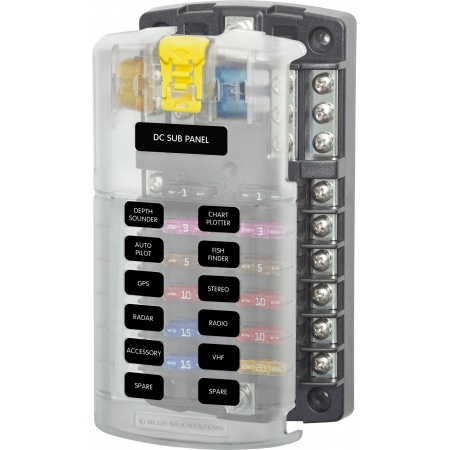

BS5026
Blue Sea Systems
ST-Blade Common Source Fuse Blocks
Common Source
Consolidates branch circuits and in-line fuses
• Common source fuse block
• Screw terminals for securing wires accept ring terminals
• One-piece stainless flange nuts ensure safe and secure connections
• Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements
• Easy to open, push button latch for easy access to fuses
• Tin-plated copper buses and fuse clips
• Fuse blocks with covers include 20 write-on circuit labels small format standard
ST-Blade Common Source Fuse Blocks
Common Source
Consolidates branch circuits and in-line fuses
• Common source fuse block
• Screw terminals for securing wires accept ring terminals
• One-piece stainless flange nuts ensure safe and secure connections
• Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements
• Easy to open, push button latch for easy access to fuses
• Tin-plated copper buses and fuse clips
• Fuse blocks with covers include 20 write-on circuit labels small format standard

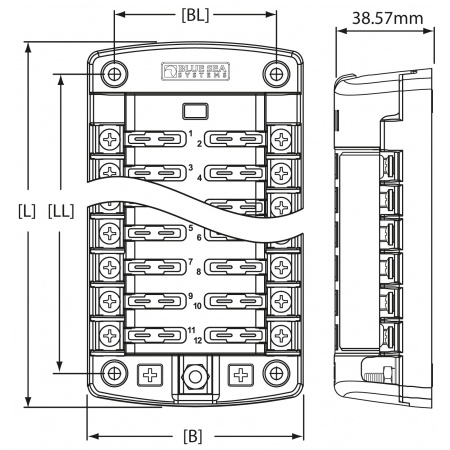

| Art.-No. | Art.-No. unpacked | fuses | A per circuit / block | Voltage V | L mm | LL mm | B mm | BL mm |
| 6 | 30 A / 100 A | 12 - 32 V | 124,3 | 95,6 | 84,2 | 63,5 | ||
| 6 | 30 A / 100 A | 12 - 32 V | 92,8 | 67,6 | 84,2 | 63,5 | ||
| 12 | 30 A / 100 A | 12 - 32 V | 164,4 | 138,7 | 84,2 | 63,5 |
Short URL: http://lindemann.kg/s/6/VdD
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
