safety accessories - fuse box - Blue Sea ST-Blade SplitBus Fuse Box
Blue Sea Systems
ST-Blade Split Bus Fuse Block
Common and/or Independent Source
For use when a mix of switched and 24-hour circuits are desired in the same block
• Common and/or independent source fuse block
• Provides two isolated groups of six ATO/ATC circuits

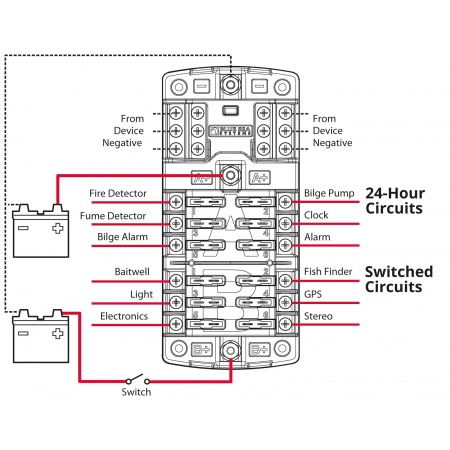

• For use with either two isolated batteries or with a single battery providing a mix of 24-hour and switched circuits
• Clear insulating cover satisfies ABYC/USCG insulation requirements and provides storage for two spare fuses
• Accepts ring terminals
• Easy to open, push button latch provides easy access to fuses
• Tin-plated copper buses and fuse clips
• Includes 20 write-on circuit labels

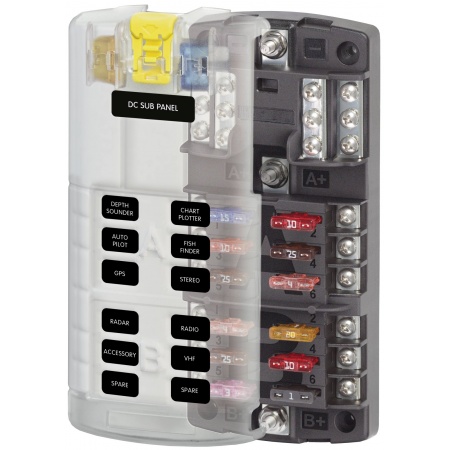

ST-Blade Split Bus Fuse Block
Common and/or Independent Source
For use when a mix of switched and 24-hour circuits are desired in the same block
• Common and/or independent source fuse block
• Provides two isolated groups of six ATO/ATC circuits
• For use with either two isolated batteries or with a single battery providing a mix of 24-hour and switched circuits
• Clear insulating cover satisfies ABYC/USCG insulation requirements and provides storage for two spare fuses
• Accepts ring terminals
• Easy to open, push button latch provides easy access to fuses
• Tin-plated copper buses and fuse clips
• Includes 20 write-on circuit labels
| Art.-No. unpacked | fuses | A per circuit / box | Voltage V |
| 12 | 30 A / 100 A | 12 - 32 V |
