safety accessories - fuse box - Blue Sea SafetyHub 100 Fuse Box
Blue Sea Systems

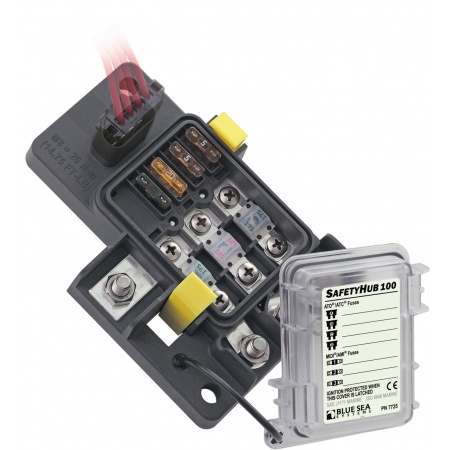

SafetyHub 100 Fuse Block
The SafetyHub 100 combines an ignition protected fuse block and integrated connecting plugs. It is safe for use on gasoline powered boats, reduces wiring connections, and consolidates up to seven fused circuits
• Accepts three AMI or MIDI Fuses for high-amp circuits including panel feeds, windlasses, and stereo amplifiers
• Accepts four ATO or ATC Fuses for circuits including bilge pumps, electronics and lights
• Sealed cover protects fuses from the harsh marine environment and satisfies ABYC/USCG insulation requirements
• Integrated connector plug eliminates loose wires and provides a secure, waterproof connection
SafetyHub 100 Fuse Block
The SafetyHub 100 combines an ignition protected fuse block and integrated connecting plugs. It is safe for use on gasoline powered boats, reduces wiring connections, and consolidates up to seven fused circuits
• Accepts three AMI or MIDI Fuses for high-amp circuits including panel feeds, windlasses, and stereo amplifiers
• Accepts four ATO or ATC Fuses for circuits including bilge pumps, electronics and lights
• Sealed cover protects fuses from the harsh marine environment and satisfies ABYC/USCG insulation requirements
• Integrated connector plug eliminates loose wires and provides a secure, waterproof connection
| Art.-No. unpacked | for Fuse | fuses | Current A | Voltage V |
| 3x AMI / MIDI 4x ATO / ATC | 7 | max 280 A | 12 V |
Short URL: http://lindemann.kg/s/6/VdK
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
