safety accessories - fuse box - Blue Sea SafetyHub 150 Fuse Box
Blue Sea Systems

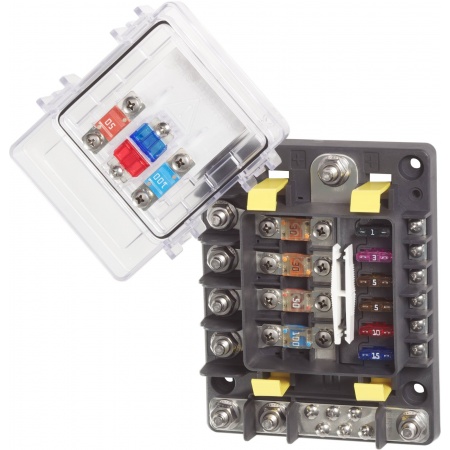

SafetyHub 150 Fuse Block
The SafetyHub 150 is an ignition protected fuse block with screw termination. It is safe for use on gasoline powered
boats, reduces wiring connections, and consolidates up to ten fused circuits
• Accepts four AMI or MIDI Fuses for high-amp circuits including panel feeds, windlasses, and stereo amplifiers
• Accepts six ATO or ATC Fuses for circuits including bilge pumps, electronics and lights
• Sealed cover protects fuses from the harsh marine environment and satisfies ABYC/USCG insulation requirements
• Negative bus provides common location for negative connection
• Circuit identification label with write-on capability
• Fuse puller to remove ATO or ATC Fuses
• Cover provides storage space for spare fuses and mounting screws
• One-piece stainless flange nuts ensure safe and secure connections
SafetyHub 150 Fuse Block
The SafetyHub 150 is an ignition protected fuse block with screw termination. It is safe for use on gasoline powered
boats, reduces wiring connections, and consolidates up to ten fused circuits
• Accepts four AMI or MIDI Fuses for high-amp circuits including panel feeds, windlasses, and stereo amplifiers
• Accepts six ATO or ATC Fuses for circuits including bilge pumps, electronics and lights
• Sealed cover protects fuses from the harsh marine environment and satisfies ABYC/USCG insulation requirements
• Negative bus provides common location for negative connection
• Circuit identification label with write-on capability
• Fuse puller to remove ATO or ATC Fuses
• Cover provides storage space for spare fuses and mounting screws
• One-piece stainless flange nuts ensure safe and secure connections
| Art.-No. | Art.-No. unpacked | for Fuse | fuses | Current A | Voltage V |
| 4x AMI / MIDI 6x ATO / ATC | 10 | max 280 A | 12 - 32 V |
