Bilge Pumps - manual bilge pumps - JABSCO Amazon Thrudeck
JE292561000

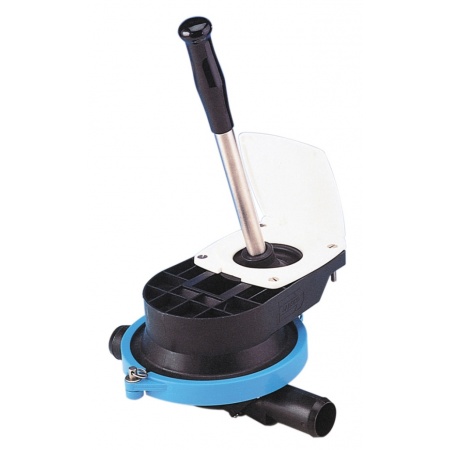

JABSCO Amazon Thrudeck
A single-acting diaphragm pump for mounting through the deck or bulkhead.
• Up to 75 l / min. with 38 mm connections.
• 38 mm (1-1/2") connections also allow solids to be pumped.
• Up to 50 l / min. with 25 mm connections.
• Corrosion resistant materials throughout.
• Single screwed clamping ring allows quick access to the pump chamber.
• 360° rotatable pump head.
• 90° swivel connections.
A single-acting diaphragm pump for mounting through the deck or bulkhead.
• Up to 75 l / min. with 38 mm connections.
• 38 mm (1-1/2") connections also allow solids to be pumped.
• Up to 50 l / min. with 25 mm connections.
• Corrosion resistant materials throughout.
• Single screwed clamping ring allows quick access to the pump chamber.
• 360° rotatable pump head.
• 90° swivel connections.
| Art.-No. | flow rate l / min | mounting | hose connection |
| 50 l / min. | Thrudeck | 25 mm (1") | |
| 75 l / min. | Thrudeck | 38 mm (1-1/2") | |

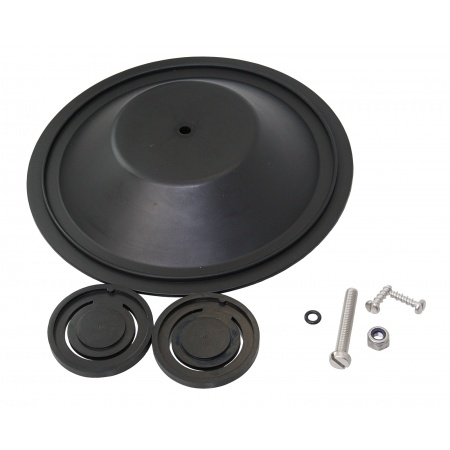

| Service Kit | |||
| Clamp Ring Assembly |
| Flow rate | 75 l / min. 50 l / min. |
| Self priming | max 5,0 m |
| Hose connection | 38 mm (1-1/2") 25 mm (1") |
| Size | 25 x 11 x 12 cm |
| Weight | 1,2 kg |
Short URL: http://lindemann.kg/s/8/VDo
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
