skin fitting - Composite resin acc. to ISO9093-2 - TRUDESIGN flat outside

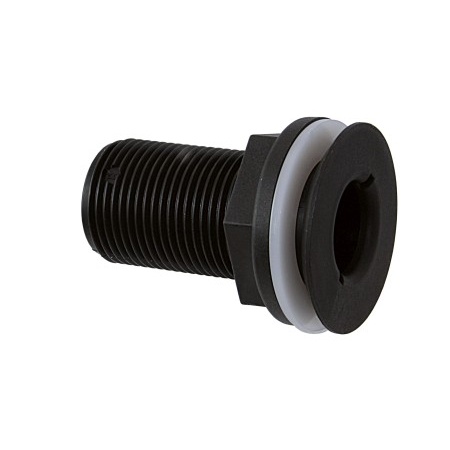

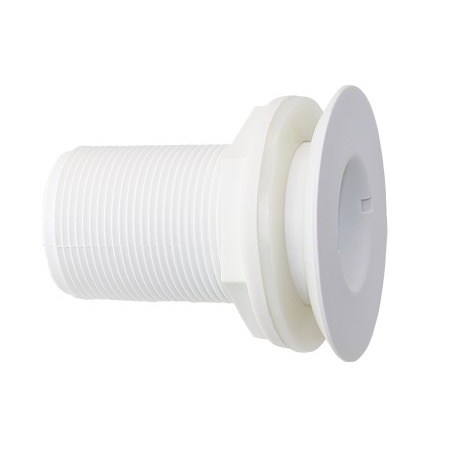

TRUDESIGN Skin fitting, Composite resin with full length thread, flat outside
Certificated by Bureau Veritas
Certificated by Bureau Veritas
| Art.-No. black SelfService | Art.-No. black lose | Art.-No. white SelfService | Art.-No. white lose | R inch | R mm | Øi mm | Øa mm | H mm | install tool |
| 1/2" | 21,3 | 13 | 32 | 70 | |||||
| 3/4" | 26,9 | 18 | 42 | 70 | TD90933 | ||||
| 1" | 33,7 | 24 | 52 | 70 | TD90934 | ||||
| 1-1/4" | 42,4 | 31 | 64 | 90 | TD90935 | ||||
| 1-1/2" | 48,3 | 37 | 80 | 90 | TD90936 | ||||
| 2" | 60,3 | 48 | 100 | 121 |

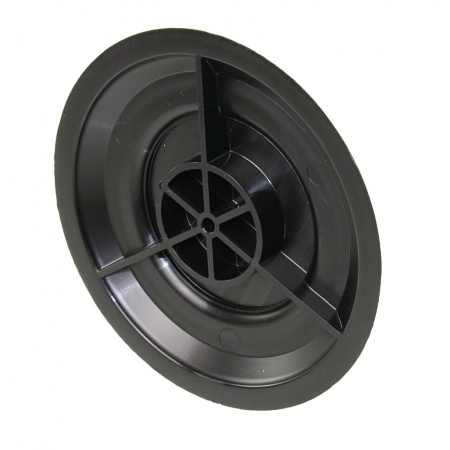

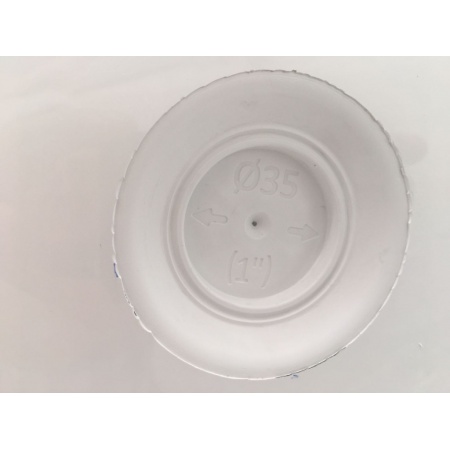

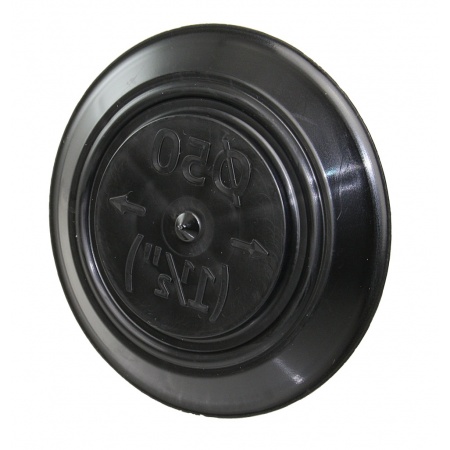

Laminating aid for flat, papered TRUDESIGN Skin fittings
Short URL: http://lindemann.kg/s/8/VET
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
