gas spring
UF66512B
Gas springs are pneumatic force accumulators. A gas spring, not equipped with a lock device, functions as follows: the pressure of the compressed nitrogen gas contained in a tube provides the extension force of the spring as the result of the difference between the internal tube pressure and the atmospheric pressure. The gas flows from the highest to the lowest pressure compartment of the tube through a self-cleaning orifice in the piston rod causing the spring rod to telescope out of the pressure tube.
• The rod surface should be protected against physical or chemical damages.
• Lateral loads should be carefully avoided.
• Attachment pivots should be well aligned.
• Springs should be mounted according to previous installation instructions ensuring correct orientation.
• Tensile forces exceeding the output force as indicated for each single spring should be avoided.
• Working temperature –30°C and +80°C.
• The rod surface should be protected against physical or chemical damages.
• Lateral loads should be carefully avoided.
• Attachment pivots should be well aligned.
• Springs should be mounted according to previous installation instructions ensuring correct orientation.
• Tensile forces exceeding the output force as indicated for each single spring should be avoided.
• Working temperature –30°C and +80°C.
| Art.-No. | spring force kg | length mm | stroke mm | Ø mm |
| 10 kg | 275 mm | 100 mm | 6 mm | |
| 20 kg | 275 mm | 100 mm | 6 mm | |
| 10 kg | 315 mm | 120 mm | 6 mm | |
| 20 kg | 315 mm | 120 mm | 6 mm | |
| 10 kg | 375 mm | 150 mm | 6 mm | |
| 20 kg | 375 mm | 150 mm | 6 mm | |
| 30 kg | 375 mm | 150 mm | 6 mm | |
| 20 kg | 525 mm | 220 mm | 8 mm | |
| 30 kg | 525 mm | 220 mm | 8 mm | |
| 40 kg | 525 mm | 220 mm | 8 mm | |
| 30 kg | 585 mm | 250 mm | 8 mm | |
| 30 kg | 700 mm | 300 mm | 10 mm | |
| 40 kg | 700 mm | 300 mm | 10 mm | |
| 50 kg | 700 mm | 300 mm | 10 mm | |
| End fittings for gas springs, delivered in pairs | ||||

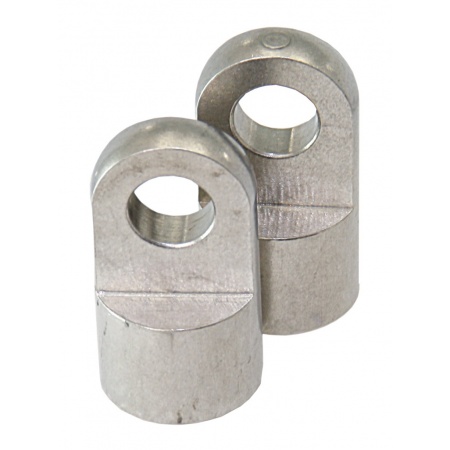

End Fittings to be ordered separatley: UF66512B by pair per spring

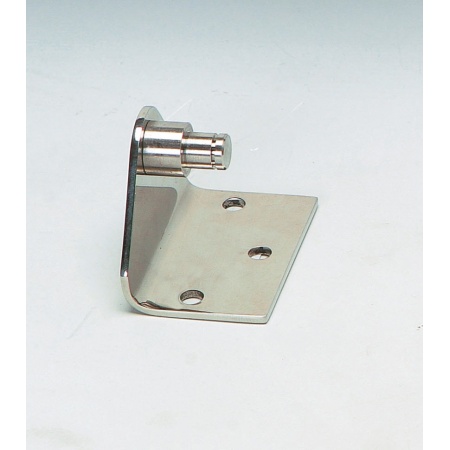

UF64329A
UF64328Y
UF64327W
Short URL: http://lindemann.kg/s/9/Q99
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
