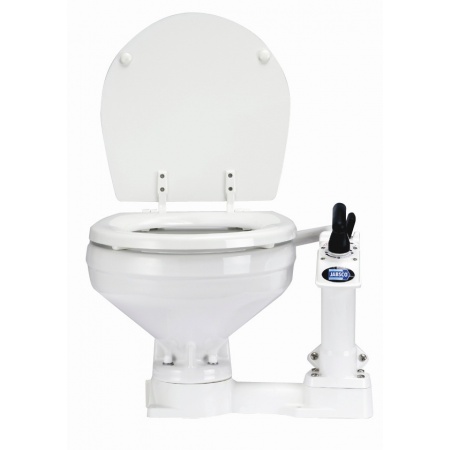

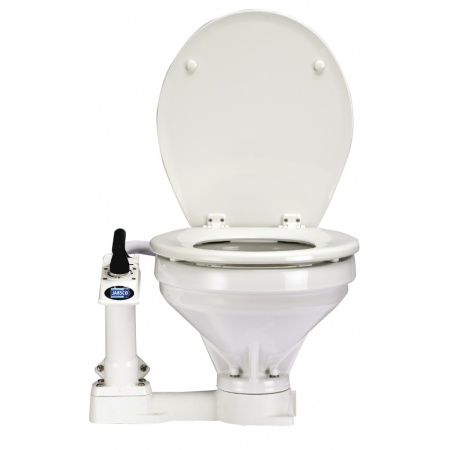

toilets - JABSCO - Twist-n-Lock
Jabsco is the world´s largest manufacturer of marine toilets for boats and yachts. With the third generation of the famous hand pump toilet, Jabsco has integrated all the experience of the past years.
The new Twist ´n´ Lock handle locks the bottom valve by a simple 90° turn of the handle as an additional protection against backflow and filling up of the toilet.
• Modern, rimless design for improved hygiene.
• SoftClose seat and lid in the comfort version.
• All fixings face forward or upwards for easy maintenance.
• Corrosion-resistant materials throughout for reliable fresh or salt water operation.
The new Twist ´n´ Lock handle locks the bottom valve by a simple 90° turn of the handle as an additional protection against backflow and filling up of the toilet.
• Modern, rimless design for improved hygiene.
• SoftClose seat and lid in the comfort version.
• All fixings face forward or upwards for easy maintenance.
• Corrosion-resistant materials throughout for reliable fresh or salt water operation.
| Art.-No. | Style | Size W x D x H | weight kg | hose Ø |
| Compact | 45 x 43 x 33 cm | 11,0 kg | In: 19 mm (3/4") Out: 38 mm (1-1/2") | |
| Comfort | 47 x 49 x 35 cm | 13,0 kg | In: 19 mm (3/4") Out: 38 mm (1-1/2") | |
| Comfort SoftClose | 47 x 49 x 35 cm | 13,0 kg | In: 19 mm (3/4") Out: 38 mm (1-1/2") |
Electric kit to convert the manual JABSCO Twist´n´Lock toilets to electric ones. Comprehensive kit includes all necessary parts like flushing pump, mercerator pump, switch, adapters, clamps, hose and fastenings.
| Art.-No. | Voltage V | Fuse | weight kg | Size L x W x H | |
| 12 V | 25 A | noisy | |||
| 12 V | 25 A | 5,7 kg | 34 x 21 x 8 cm | noisy |
Service kits and spareparts for manual toilets.
| Art.-No. | Service-Kit | description |
| A since 2008 | Sealings & elastomeres | |
| A until 2007 | Sealings & elastomeres | |
| B | Pump assembly | |
| C | Valve cover | |
| D | Pump cylinders | |
| E | Bowl/Base connection kit | |
| F | Non-return valve | |
| ServiceKit A for JE29200 | ||
| Outlet elbow for JT29090/29120 | ||
| Elbow rinse intake with seal | ||
| Top valve gasket | ||
| Bottom valve gasket | ||
| Piston rod seal (up to 2008) | ||
| Piston rod seal (since 2008) | ||
| O-Ring for piston | ||
| Piston rod and O-Ring | ||
| Toilet seat for small bowl | ||
| Toilet seat for large bowl | ||
| Toilet seat for large bowl (since 2018) | ||
| Hinge set for small bowl | ||
| Hinge set for large bowl | ||
| Hinge set for large bowl SoftClose | ||
| Socket (since 1986) | ||
| Bayonet plug & O-Ring #8 (since 2003) | ||
| Macerator housing for JE29200-0120 | ||
| Socket gasket #12 for JE29200-1000 | ||
| Socket gasket #7 for JE29200-1000 | ||
| Switch panel gasket #20 for JE29200-1000 |
Short URL: http://lindemann.kg/s/8/VJ8
All article numbers marked in blue can be ordered.
All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
