toilets - JABSCO - Series 37010 electric

thumb
thumb
Downloadthumb

Mit dem Klo geht das so

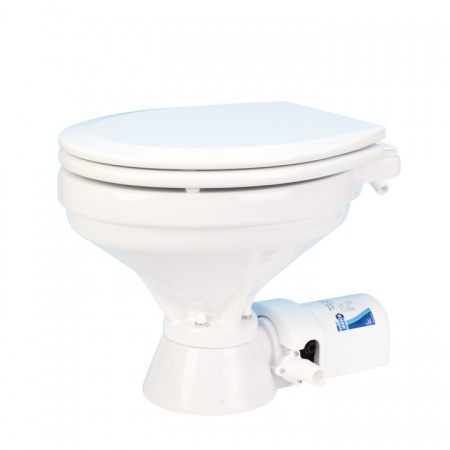

Conventional electric toilet, inexpensive and proven technology with both pumps on one drive. Thanks to many years of model maintenance, this toilet is one of the most reliable in its segment.
• Modern, rimless design for improved hygiene.
• SoftClose seat and lid in the comfort version.
• For installations near or below the waterline, the active vented loop JE37068-2000 must be used in the flush supply line. The waste water line must be equipped with a passive vented loop.
Art.-No.StyleVoltage
V		FuseSize
W x D x H		Weight
kg		Hose
In		Hose
Out
Compact12 V25 A35 x 45 x 34 cm15,5 kg16 mm / 19 mm25 mm / 38 mm
Compact24 V15 A35 x 45 x 34 cm15,5 kg16 mm / 19 mm25 mm / 38 mm
Comfort12 V25 A38 x 49 x 37 cm17,5 kg16 mm / 19 mm25 mm / 38 mm
Comfort24 V15 A38 x 49 x 37 cm17,5 kg16 mm / 19 mm25 mm / 38 mm
Comfort SoftClose12 V25 A38 x 49 x 36 cm17,5 kg16 mm / 19 mm25 mm / 38 mm
Comfort SoftClose24 V15 A38 x 49 x 36 cm17,5 kg16 mm / 19 mm25 mm / 38 mm
thumb
Service kits and spare parts for Series 37010
Art.-No.Service-Kitdescription
ASealings & elastomeres
BPump assembly 12V
BPump assembly 24V
ENon-return valve
 Outlet elbow
 Elbow rinse intake with seal
 O-Ring pump seal
 middle seal
 Centrifugal impeller
 Solenoid valve 12/24V for vented loops
 Toilet seat for a small bowl
 Toilet seat for large bowl (since 2018)
 Hinge set for large bowl SoftClose

Short URL: http://lindemann.kg/s/8/VJ9

All article numbers marked in blue can be ordered.

All prices are recommended retail prices in Euro - currency incl. German VAT
All technical specifications are without obligation; errors excepted.
Deliveries exclusively via marine retailers.
